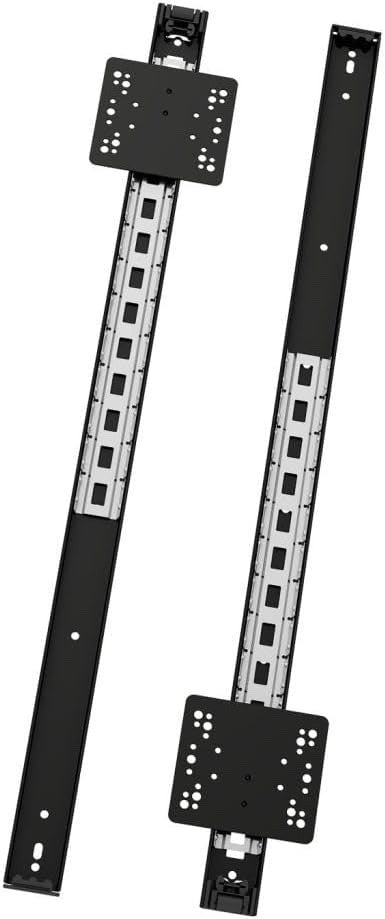

VADANIA 700mm Pocket Door Runners #PD35 – 1 Pair, Black Steel Concealed Cabinet Door Slides, Double Ball Bearing, 20kg Capacity, Side or Upper Mount
Create a practical concealed door system with the VADANIA 700mm #PD35 Pocket Door Runners. Designed for custom cabinetry, wardrobes, kitchen cupboards and storage units, these sliding mechanisms allow compatible cabinet doors to retract into a dedicated compartment, helping maximise available space and maintain a neat appearance when the doors are open.
Manufactured from cold-rolled steel with a black finish, the runners feature a double-row ball bearing mechanism designed for smooth sliding movement. Their compact 35mm-wide profile and pocket door construction make them suitable for bespoke furniture projects where conventional outward-opening cabinet doors may obstruct access or surrounding space.
The manufacturer specifies a maximum load capacity of 20kg per pair and supports both side-mounted and upper-mounted installation arrangements. The runners are designed for compatible cabinet doors and can be incorporated into suitable kitchen, wardrobe, media cabinet and office storage installations.
Please Note: This listing is for 1 pair (2 pieces) of VADANIA #PD35 Pocket Door Runners in the 700mm length. These are specialised concealed cabinet door slides, not conventional full-extension drawer runners. Cabinet door hinges and support rollers are NOT included and must be purchased separately where required. The manufacturer recommends approximately 60mm installation clearance and an 18mm door panel thickness. The maximum stated load capacity is 20kg per pair, subject to the complete installation and door configuration.
Specifications
-
Brand: VADANIA
-
Product Series: #PD35
-
Model: VP1235
-
Product Type: Pocket Door Sliding Runners
-
Quantity: 1 Pair (2 Runners)
-
Colour: Black
-
Material: Cold-Rolled Steel
-
Finish: Black Steel
-
Runner Length: 700mm
-
Runner Width: 35mm
-
Main Plate Thickness: 2mm
-
Middle Slider Thickness: 1mm
-
Maximum Load Capacity: 20kg Per Pair
-
Sliding Mechanism: Double-Row Steel Ball Bearings
-
Mounting Type: Side Mount / Upper Mount
-
Recommended Installation Gap: 60mm
-
Recommended Door Panel Thickness: 18mm
-
Auxiliary Side Panel Thickness: Same as Door Panel or 5mm Less
-
Minimum Cabinet Depth: Runner Length + 3mm
-
Minimum Cabinet Depth for 700mm Runners: Approximately 703mm
-
Extension Type: Pocket Door Retraction
-
Full Extension: No
-
Runner Construction: Non-Separable
-
Recommended Screw Type: M4
-
Compatible Hinge Types: Suitable Inset or Half-Overlay Hinges, Depending on Cabinet Design
-
Recommended Applications: Kitchen Cabinets, Wardrobes, TV Cabinets, Office Storage and Custom Cabinetry
-
Suitable Use: Indoor
Key Features
-
700mm Pocket Door Runners: Designed for cabinets requiring a nominal 700mm concealed sliding mechanism.
-
Space-Saving Concealed Door Design: Allows compatible cabinet doors to retract into a dedicated internal compartment rather than remaining fully extended into the surrounding room.
-
20kg Maximum Load Capacity: The manufacturer rates the runner system to support up to 20kg per pair when correctly installed.
-
Durable Cold-Rolled Steel Construction: Manufactured using steel components designed to provide rigidity and support during regular operation.
-

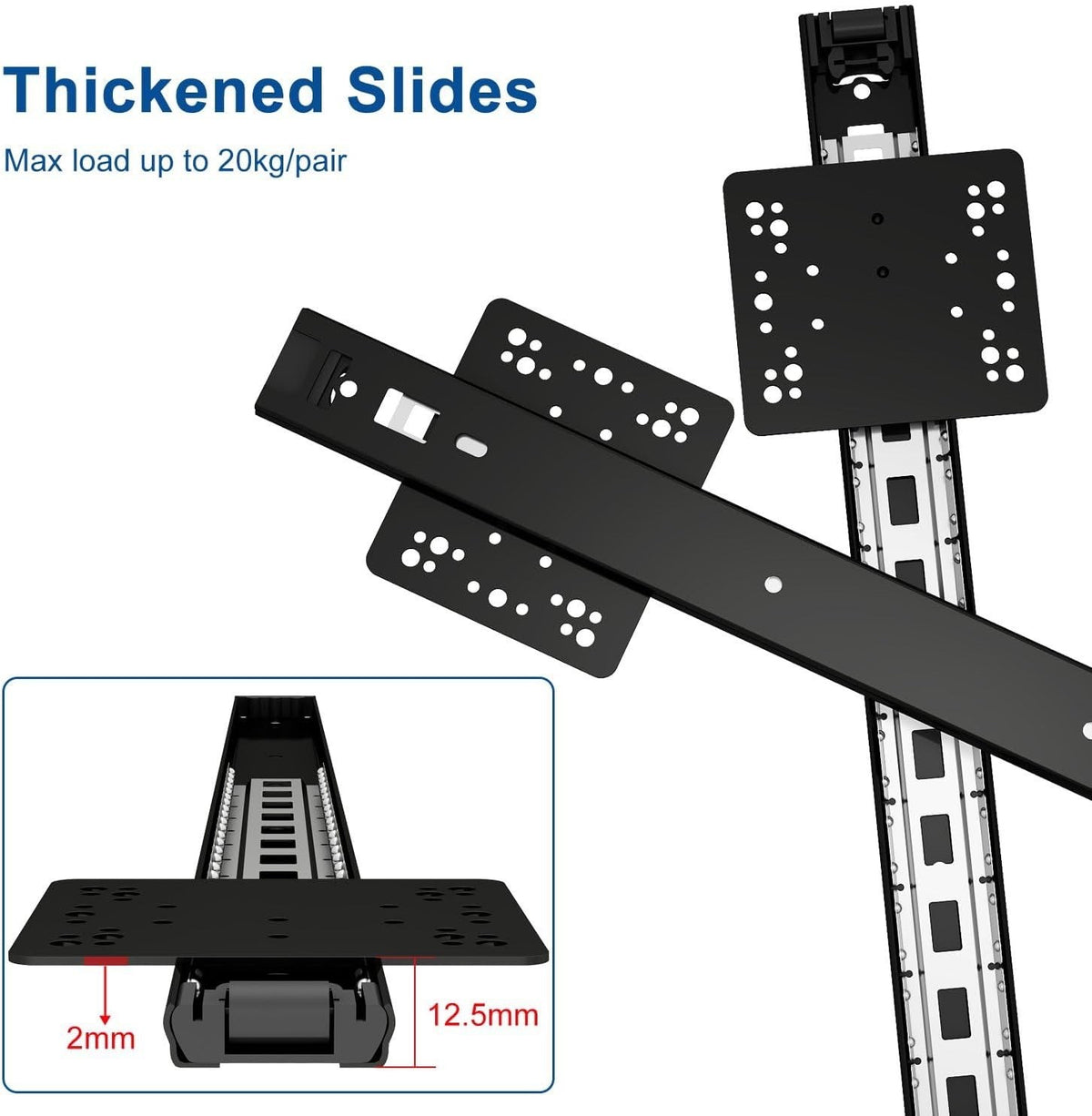

Reinforced 2mm Main Plate: The mounting plate uses 2mm-thick steel, while the middle sliding section is approximately 1mm thick.
-
Double-Row Ball Bearing System: The sliding mechanism incorporates two rows of steel ball bearings to support smooth movement.
-
35mm Wide Runner Profile: The compact design is suitable for appropriately planned concealed cabinet door installations.
-

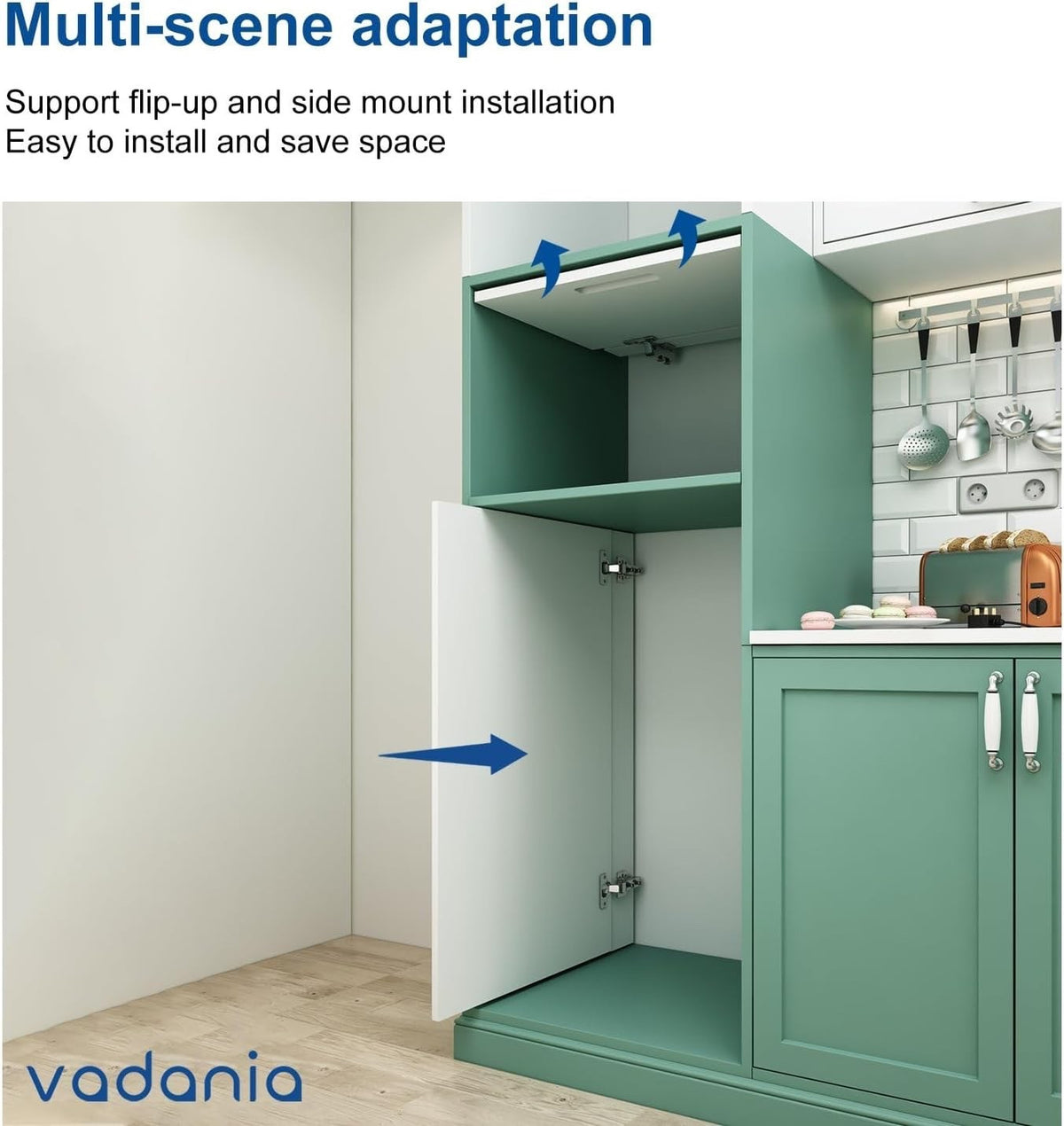

Side or Upper Mounting: Supports different installation arrangements depending on the cabinet construction and door configuration.
-
Black Steel Finish: Provides a discreet appearance suitable for concealed cabinet mechanisms and modern furniture projects.
-
Suitable for Custom Cabinetry: Can be incorporated into bespoke cupboards, wardrobes, storage cabinets and other suitable furniture.
-
Improved Cabinet Access: Retracting doors into the cabinet sides can provide more convenient access to the interior storage space.
-
Suitable for Compact Rooms: The concealed door arrangement can help reduce obstruction in narrow rooms, kitchens and other spaces where outward-opening doors may be inconvenient.
-
Non-Separable Runner Design: The sliding mechanism is manufactured as a connected assembly rather than a conventional detachable drawer runner.
-
Flexible Hinge Compatibility: The manufacturer recommends selecting suitable inset or half-overlay hinges according to the cabinet door arrangement.
-
Multiple Installation Applications: Suitable for compatible kitchen cabinets, wardrobe doors, TV cabinets, office furniture and custom storage systems.
Pocket Door Sliding Mechanism

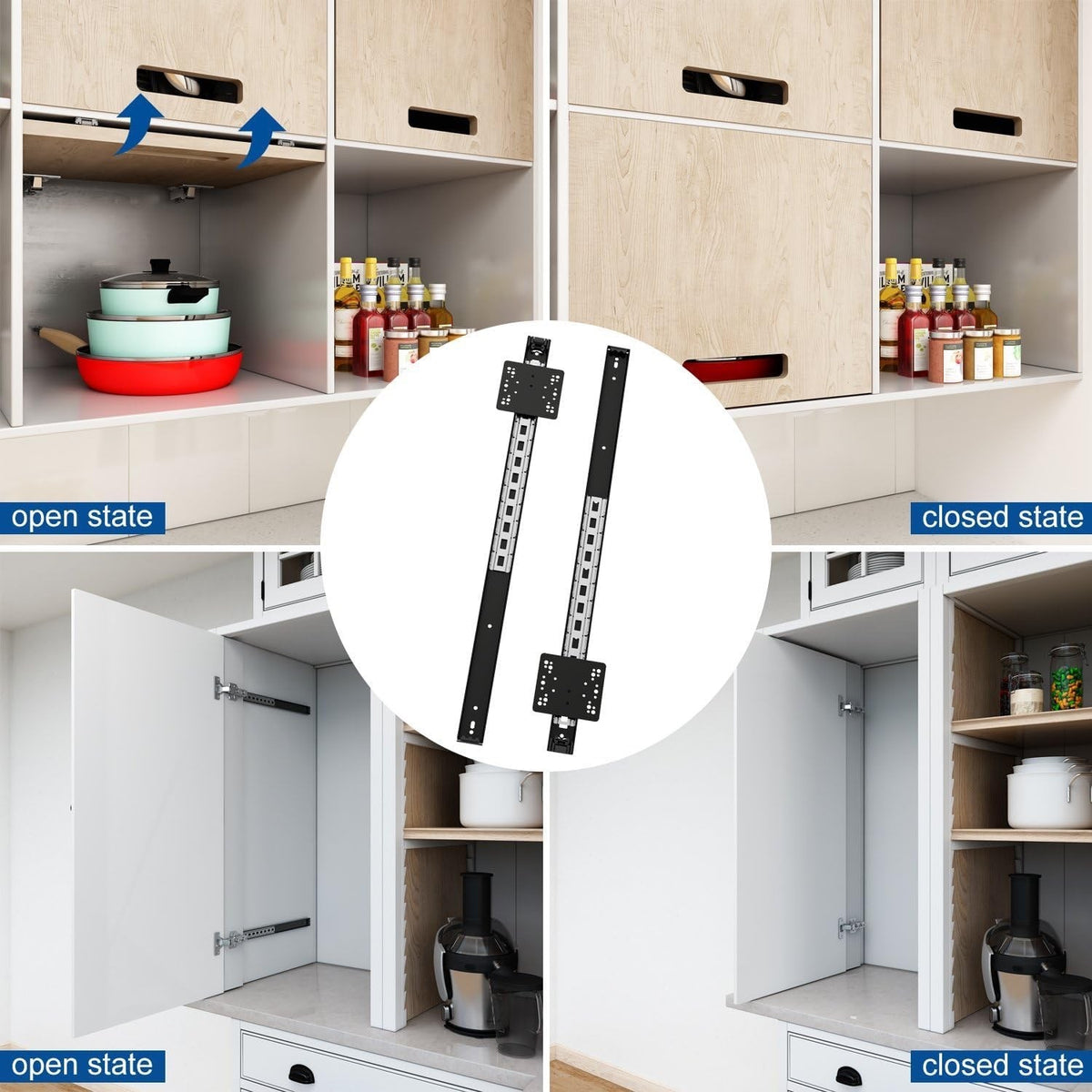

The VADANIA #PD35 runners are designed for pocket door installations in which a cabinet door opens and then slides into a dedicated space within the cabinet structure.
This arrangement can help reduce the space occupied by an open door and provide convenient access to the cabinet interior.
The mechanism is particularly useful for suitable furniture designs where conventional hinged doors would otherwise extend into walkways, work areas or surrounding furniture.

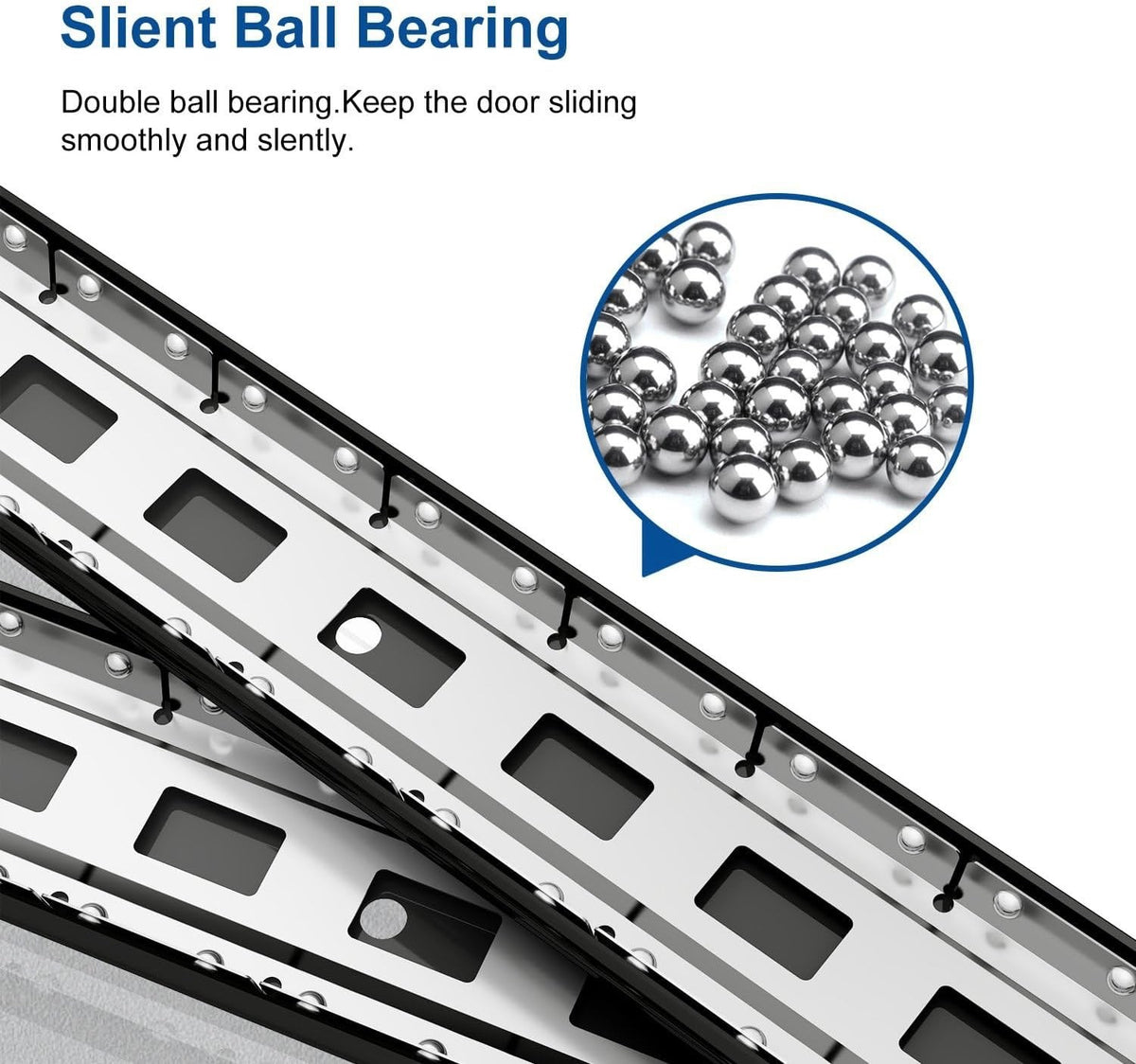

Double Ball Bearing Construction
The runners feature a double-row steel ball bearing mechanism designed to support smooth sliding movement.
The steel bearing system helps guide the moving sections during operation, while the reinforced mounting plate provides structural support for the mechanism.
Correct alignment, suitable hinges and an adequately supported cabinet structure are essential for proper operation.
Cold-Rolled Steel Construction
The #PD35 runner system is manufactured from cold-rolled steel with a black finish.
-

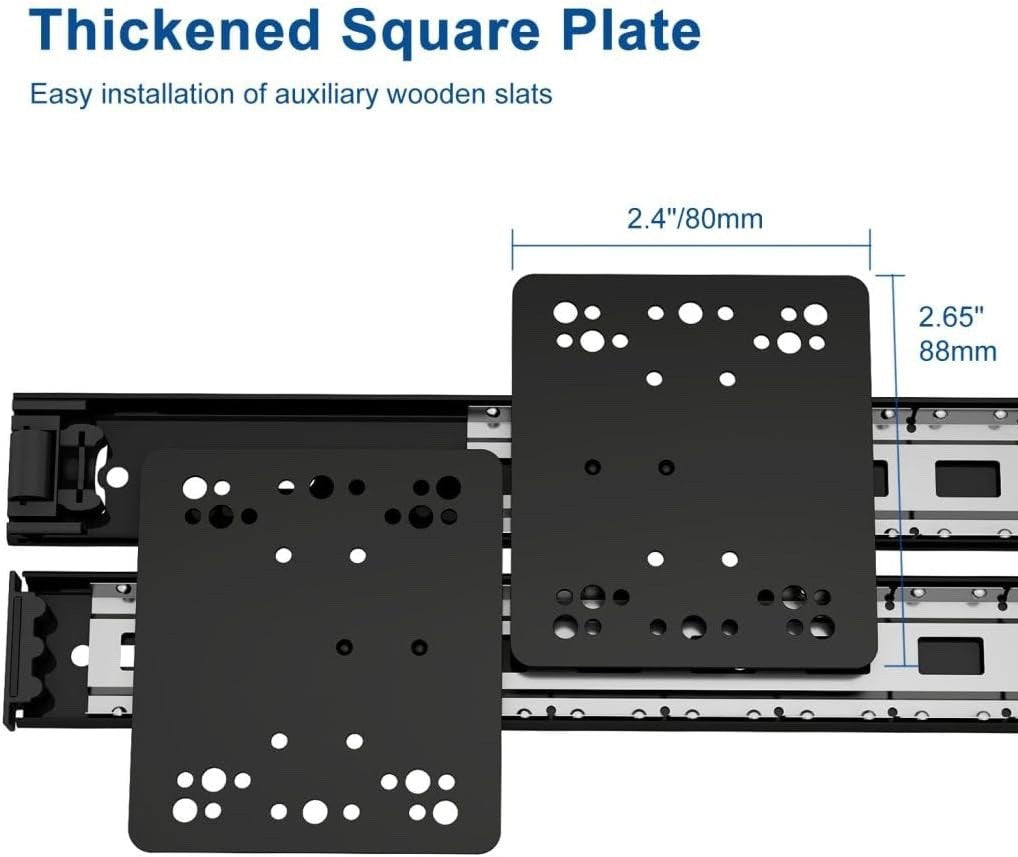

Main Mounting Plate: Approximately 2mm thick.
-
Middle Sliding Section: Approximately 1mm thick.
-
Runner Width: 35mm.
-
Runner Length: 700mm.
-
Maximum Load: 20kg per pair.
The construction is designed for suitable residential and commercial cabinet applications, provided the complete installation remains within the manufacturer's stated operating limits.
Suitable Cabinet Applications
-
Kitchen Cabinets: Concealed doors for compatible kitchen cupboards and storage units.
-
Pantry Cabinets: Suitable for bespoke pantry arrangements where doors retract into the cabinet structure.
-
Wardrobes: Can be used in appropriately designed wardrobe door installations.
-
TV Cabinets: Provides a concealed door mechanism for suitable media storage furniture.
-
Office Cabinets: Suitable for cupboards and storage compartments where open doors would otherwise obstruct working areas.
-
Display Cabinets: Can be incorporated into custom furniture requiring retractable doors.
-
Home Storage: Useful for bespoke concealed cupboard systems and other appropriate furniture projects.
Installation Requirements
The VADANIA #PD35 runners require careful measurement and alignment before installation.
-
Runner Length: 700mm.
-
Recommended Installation Gap: Approximately 60mm.
-
Recommended Door Thickness: 18mm.
-
Auxiliary Side Panel: Recommended to be the same thickness as the door panel or approximately 5mm thinner.
-
Minimum Cabinet Depth: Runner length plus approximately 3mm, giving a nominal minimum of 703mm for the 700mm version.
-
Mounting Method: Side mounting or upper mounting, depending on the selected cabinet design.
-
Recommended Fixings: M4 screws.
-
Hinge Selection: Compatible inset or half-overlay hinges according to the door configuration.
The stated minimum cabinet depth is a runner clearance requirement and does not necessarily represent the complete space required for every cabinet installation. Additional clearance may be needed for hinges, support rollers, door thickness and other components.
Door Height and Runner Quantity

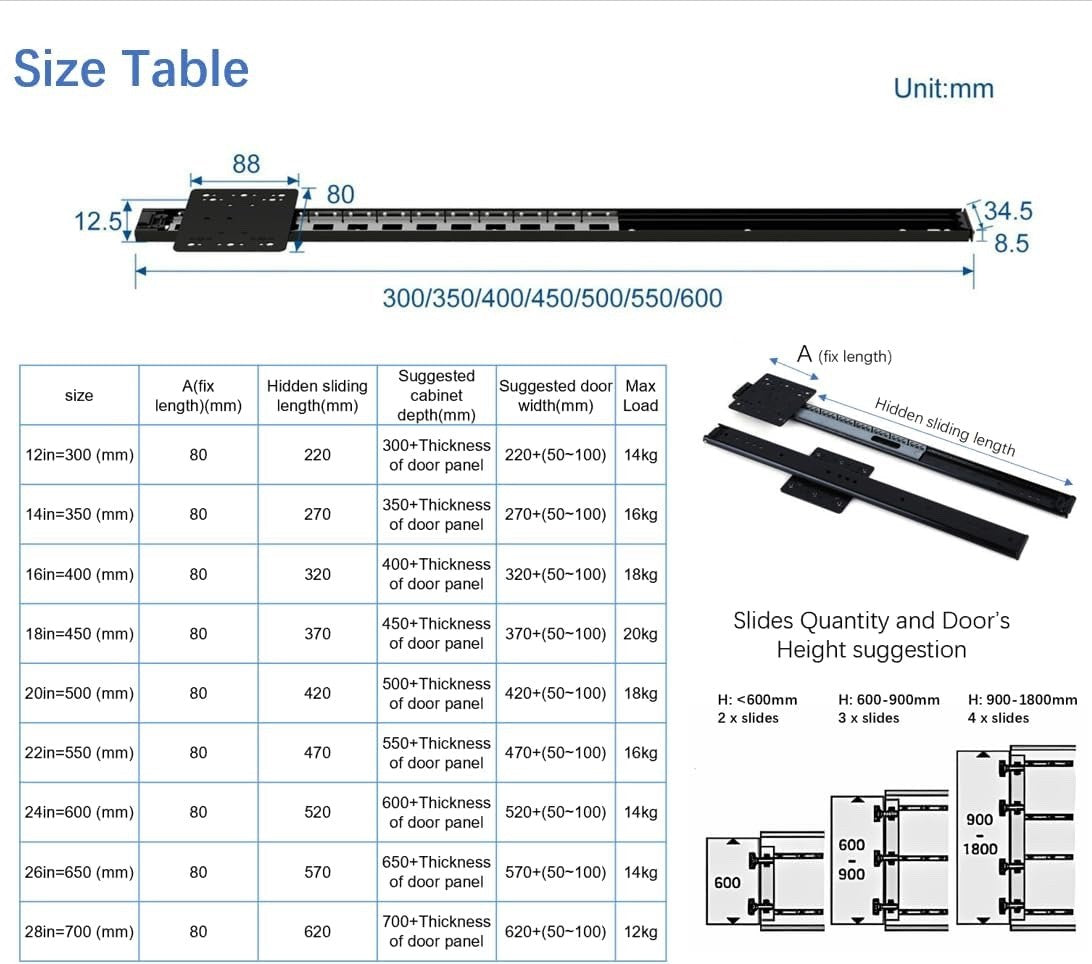

The manufacturer provides the following guidance for selecting the number of runners according to door height:
-
Doors Below 600mm High: 2 runners.
-
Doors Between 600mm and 900mm High: 3 runners.
-
Doors Between 900mm and 1800mm High: 4 runners.
This listing contains 2 runners only. Taller door installations may require additional runners purchased separately.
The correct quantity and positioning should be determined using the manufacturer's installation drawings and the dimensions and weight of the intended door.

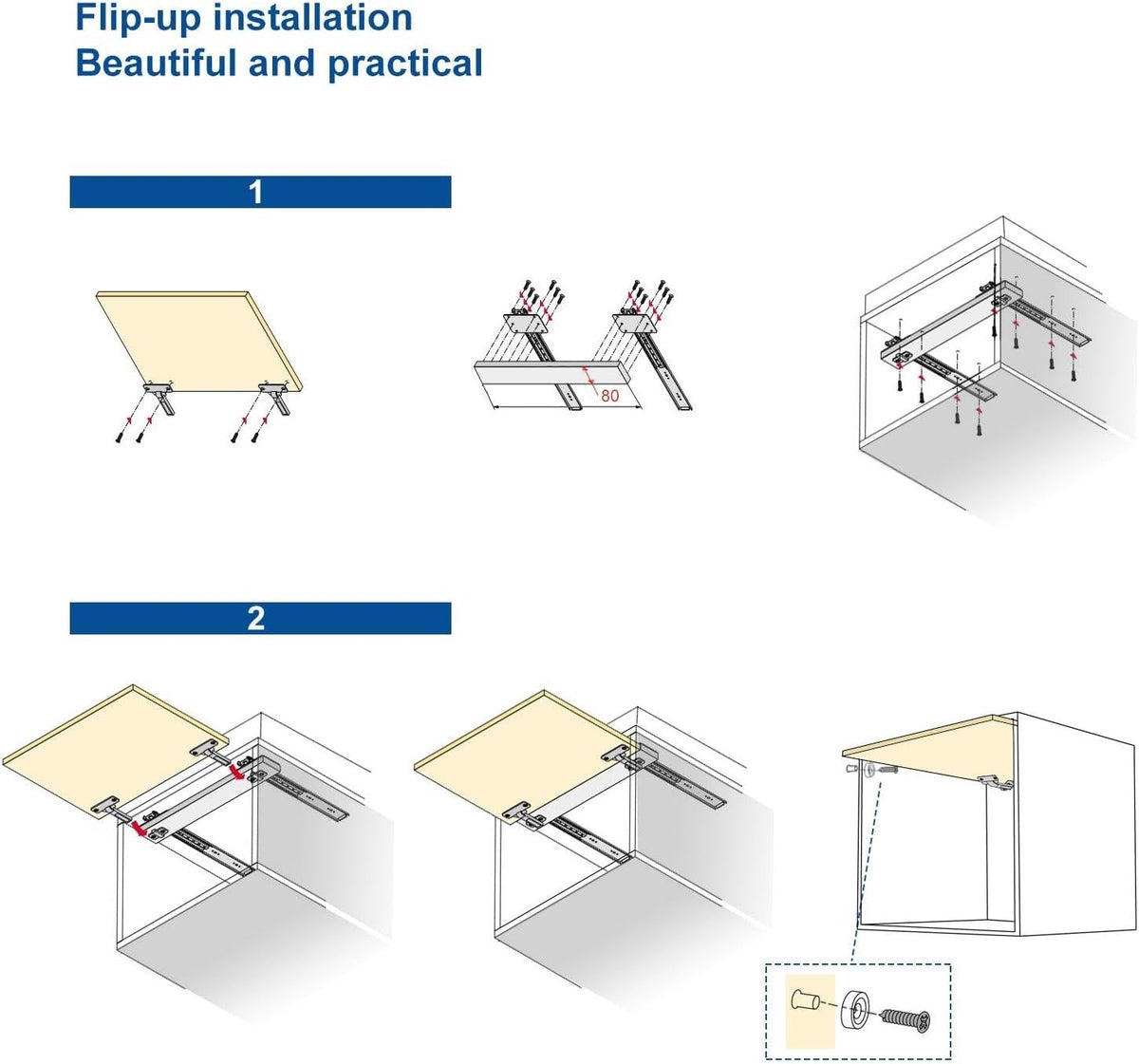

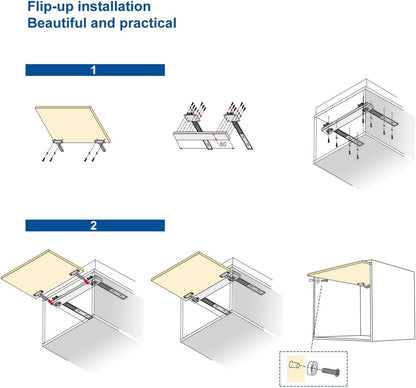

Installation Overview
-
Step 1: Measure the cabinet depth, door height, door thickness and available pocket space.
-
Step 2: Confirm that the 700mm runner length is suitable for the cabinet design.
-
Step 3: Select the appropriate number of runners according to the door height and installation requirements.
-
Step 4: Obtain compatible hinges, support rollers and suitable mounting fixings as required.
-
Step 5: Mark the runner positions using the manufacturer's installation drawings.
-
Step 6: Secure the runners to a suitable flat, rigid cabinet structure.
-
Step 7: Install the compatible door hinges and additional support components.
-
Step 8: Align the door and test the opening and retracting movement.
-
Step 9: Make any permitted adjustments to achieve smooth operation.
-
Step 10: Check that all mounting components are secure before regular use.
Package Contents
- 2 x VADANIA #PD35 700mm Black Steel Pocket Door Runners (1 Pair)
Important Information
- This listing is for the 700mm length of the VADANIA #PD35 pocket door runner series.
- The package contains one pair, consisting of two runners.
- Cabinet door hinges are not included.
- Support rollers are not included.
- Additional runners may be required depending on the height and weight of the cabinet door.
- The maximum manufacturer-stated load capacity is 20kg per pair.
- Do not exceed the applicable load capacity of the complete installation.
- The product is designed for concealed cabinet doors and is not a standard full-extension drawer runner.
- The runners are non-separable and should not be forcibly dismantled.
- The manufacturer recommends approximately 60mm installation clearance.
- The recommended door panel thickness is 18mm.
- The auxiliary side panel should be the same thickness as the door panel or approximately 5mm thinner, according to the manufacturer's guidance.
- The minimum cabinet depth requirement is approximately 703mm for the 700mm runner, before allowing for additional components or project-specific clearance.
- Suitable inset or half-overlay hinges must be selected according to the cabinet door design.
- The manufacturer identifies M4 as the recommended screw type.
- Ensure the cabinet structure is sufficiently rigid and capable of supporting the door and sliding mechanism.
- Install the runners on accurately aligned, flat mounting surfaces.
- Incorrect alignment may cause binding, uneven movement or premature wear.
- Keep fingers clear of moving runners, hinges and other mechanisms during operation.
- Do not use the runners if the steel components, mounting plates or ball bearing mechanisms are damaged.
- Inspect mounting fixings and moving components periodically for looseness or wear.
- Do not apply excessive force if the door becomes difficult to slide.
- The product is intended for suitable indoor cabinetry applications.
- Follow the manufacturer's installation drawings and technical guidance before cutting or modifying cabinet components.
- Cabinet doors, hinges, support rollers, cabinets and decorative accessories are not included.
- Please confirm the 700mm length, available cabinet depth and required runner quantity before purchasing.
