Heavy Duty Drawer Runners 600mm Locking Slides 220kg Full Extension 76mm Pair

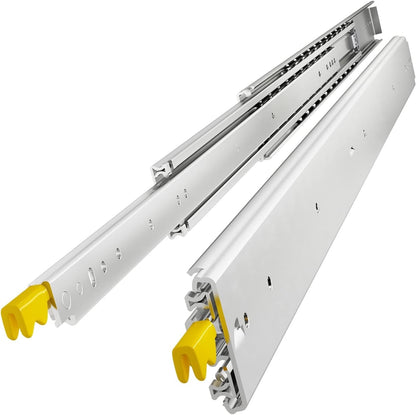

VADANIA 600mm Ultra Heavy Duty Locking Drawer Runners #D76 – 1 Pair, Full Extension Ball Bearing Slides, 76mm Wide, Side Mount, Up to 220kg

Upgrade heavy-duty storage systems with the VADANIA 600mm #D76 Locking Drawer Runners. Designed for demanding industrial, workshop and vehicle storage applications, these robust drawer slides combine a reinforced steel construction with full-extension movement and an integrated locking mechanism.

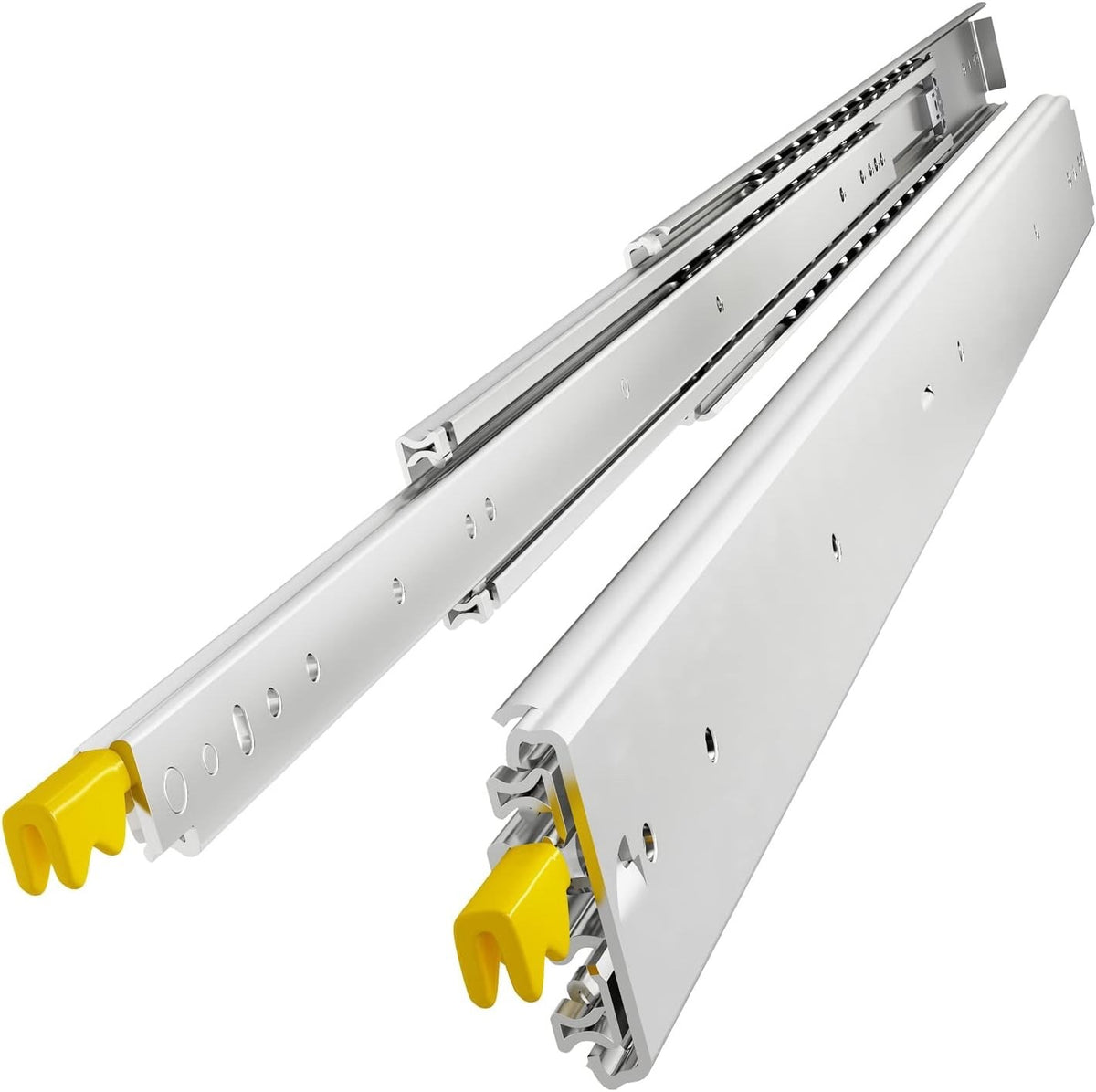

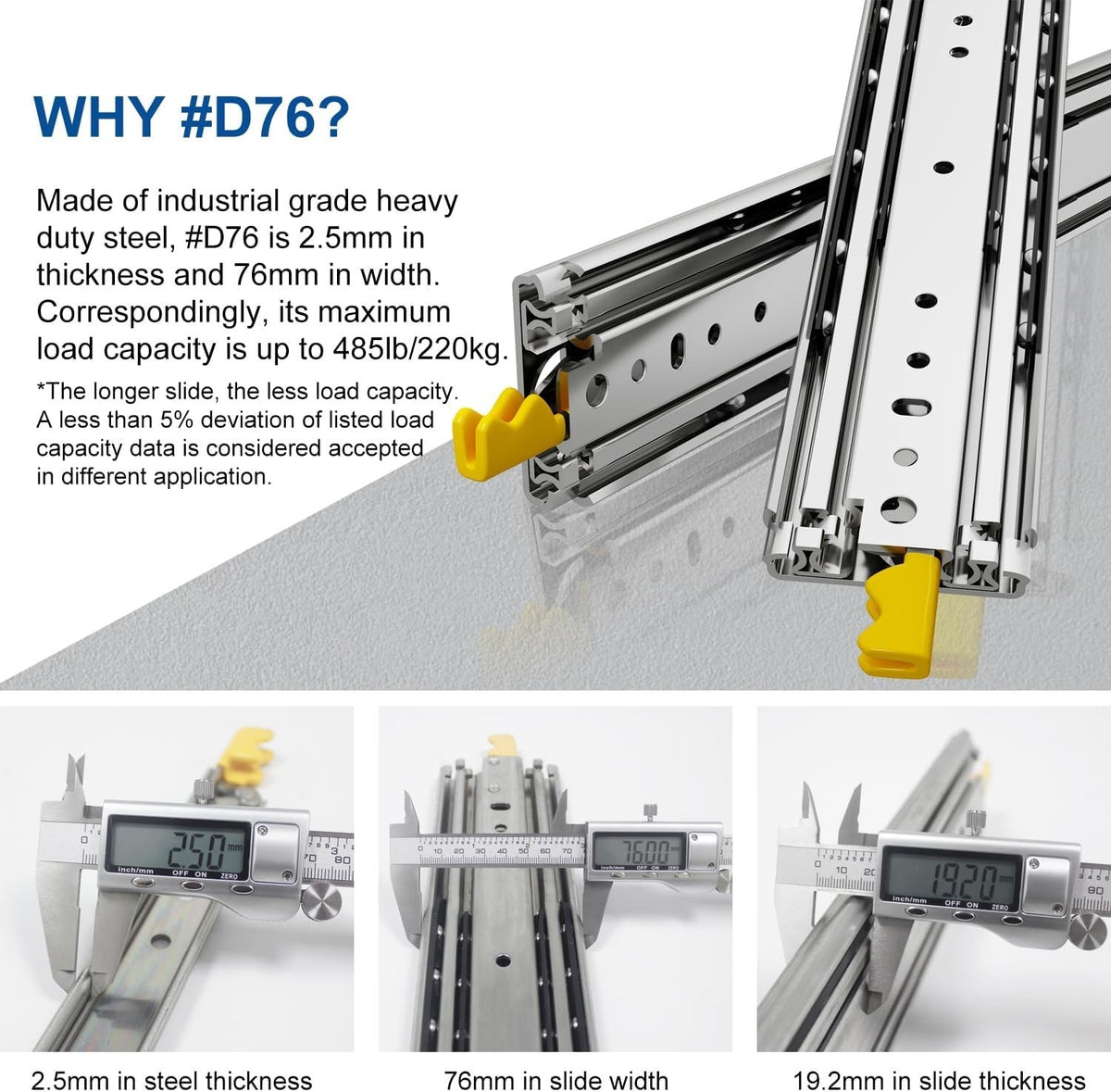

Manufactured from 2.5mm thick Q235 cold-rolled steel with a galvanised finish, the runners feature a 76mm-wide profile, upgraded 7.5mm ball bearings and a three-section telescopic design. The integrated push-button locking system secures the drawer in both the fully closed and fully extended positions, making these runners suitable for heavy pull-out storage compartments, workshop drawers, van conversions and other appropriate installations.

Please Note: This listing is for 1 pair (2 runners) of VADANIA #D76 locking drawer slides in the 600mm length. The advertised 220kg is the maximum rating for the product range, not a confirmed load rating for every length. Actual permitted loading depends on the selected runner length, mounting arrangement and supporting structure. These runners require approximately 19mm side clearance on each side. They are non-separable and designed for side mounting. Mounting screws and optional L-shaped brackets are not included.

Specifications

• Brand: VADANIA
• Model: #D76
• MPN: UK-TRACK(HD76)-600L
• Product Type: Ultra Heavy Duty Locking Drawer Runners
• Quantity: 1 Pair (2 Runners)
• Runner Length: 600mm
• Runner Width: 76mm
• Steel Thickness: 2.5mm
• Material: Q235 Cold-Rolled Steel
• Finish: Galvanised Steel
• Colour: Silver / Steel

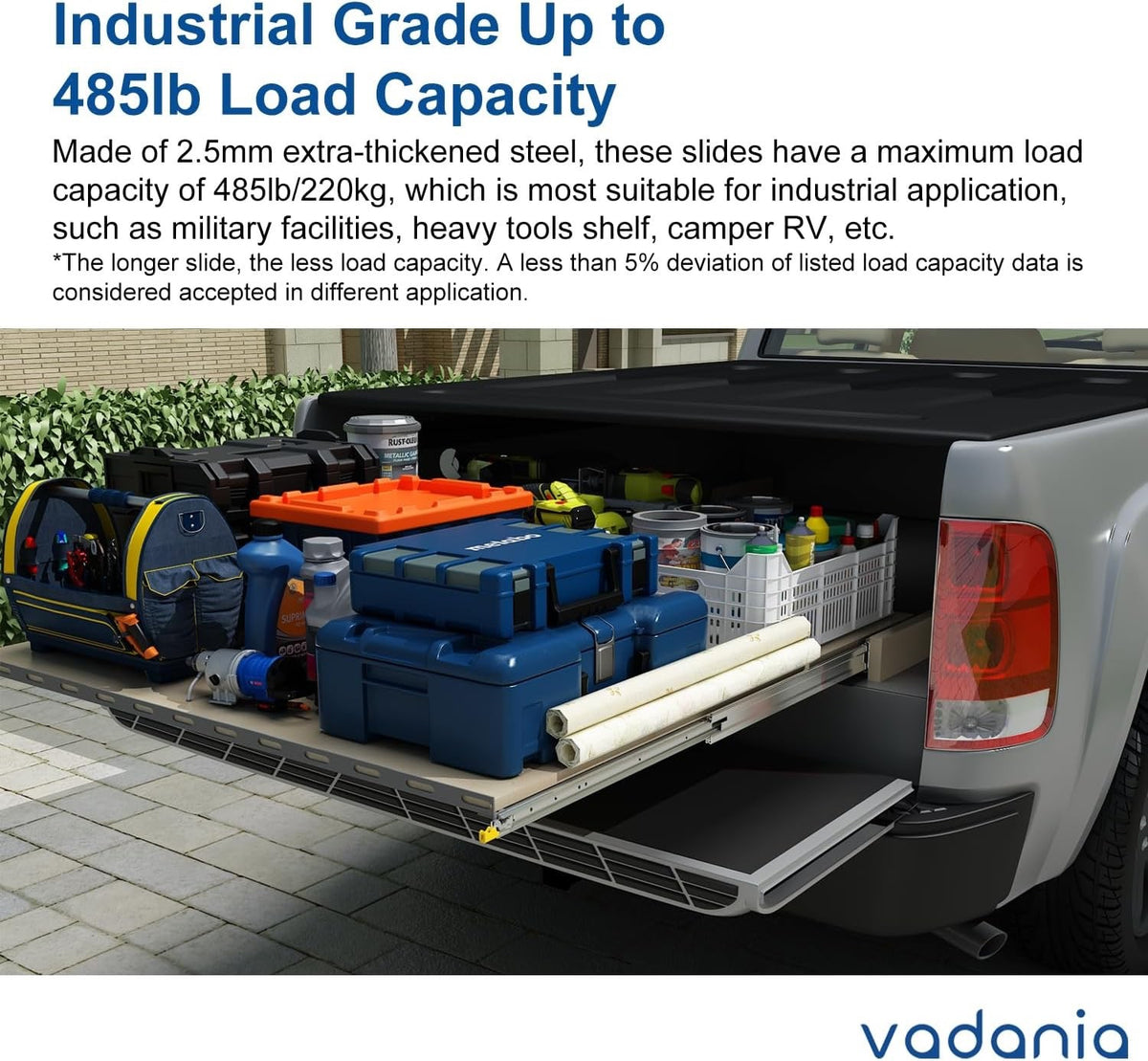

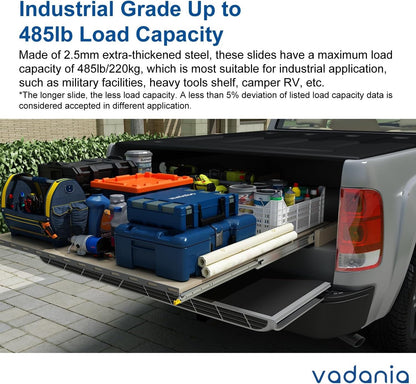

• Maximum Range Load Rating: Up to 220kg (485lb) Per Pair, Depending on Length
• Extension Type: Full Extension
• Slide Construction: Three-Section Telescopic
• Movement: Ball Bearing
• Ball Bearing Diameter: 7.5mm
• Locking Mechanism: Push-Button Lock-In / Lock-Out
• Locking Positions: Fully Closed and Fully Extended
• Mounting Type: Side Mount
• Required Side Clearance: Approximately 19mm Per Side
• Runner Design: Non-Separable
• Recommended Mounting Screws: M6
• Mounting Screws Included: No
• Item Weight: Approximately 6.15kg Per Pair
• Manufacturer-Stated Durability Testing: Over 100,000 Operating Cycles
• Suitable Use: Industrial Drawers, Workshop Storage, Vehicle Conversions and Heavy-Duty Pull-Out Systems

Key Features

• Ultra Heavy Duty Construction: Manufactured using 2.5mm thick Q235 cold-rolled steel for demanding drawer and sliding storage applications.
• Up to 220kg Range Capacity: The #D76 series has a manufacturer-stated maximum capacity of 220kg per pair, with the applicable rating varying according to runner length.
• 600mm Length: Designed for compatible drawers and pull-out storage compartments requiring a nominal 600mm slide length.
• 76mm Wide Reinforced Profile: The wider steel construction provides additional structural strength compared with many standard domestic drawer runners.
• Dual-Position Locking System: The integrated mechanism locks the runners in both fully closed and fully extended positions.
• Convenient Push-Button Release: The locking mechanism can be released using the integrated button when opening or closing the drawer.
• Three-Section Full Extension: The telescopic slide design allows the drawer to extend fully, providing improved access to stored equipment and contents.
• Upgraded 7.5mm Ball Bearings: The larger bearing components are designed to support smooth sliding movement under suitable loads.
• Side-Mounted Installation: Designed for fitting to the sides of compatible drawers, cabinets and storage structures.
• Non-Separable Construction: The runner sections remain connected, providing a fixed telescopic assembly designed for heavy-duty applications.
• Galvanised Steel Finish: The protective coating provides corrosion resistance for suitable workshop, industrial and vehicle storage environments.
• Reinforced Mounting Points: Features mounting holes designed for secure installation using appropriate fixings, with M6 screws recommended by the manufacturer.
• Long-Term Operating Design: The manufacturer states that the runner series has undergone durability testing exceeding 100,000 operating cycles.
• Heavy-Duty Storage Applications: Suitable for compatible tool drawers, machinery cabinets, equipment compartments and industrial storage systems.

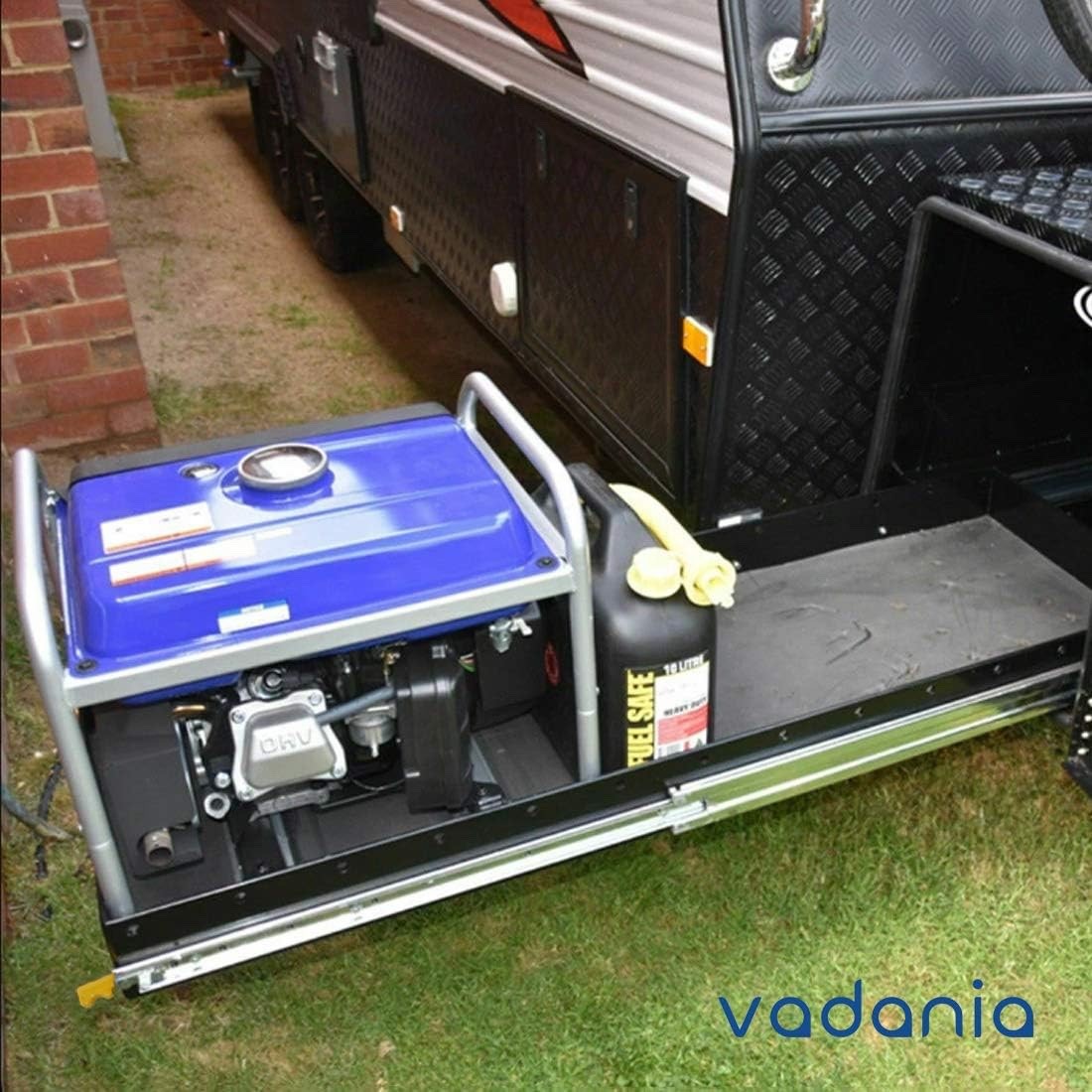

• Vehicle Conversion Applications: Can be used in appropriately engineered pull-out storage systems for vans, trucks and mobile workshops.
• Pair Supplied: Includes two runners for installation on opposite sides of a compatible drawer or sliding platform.

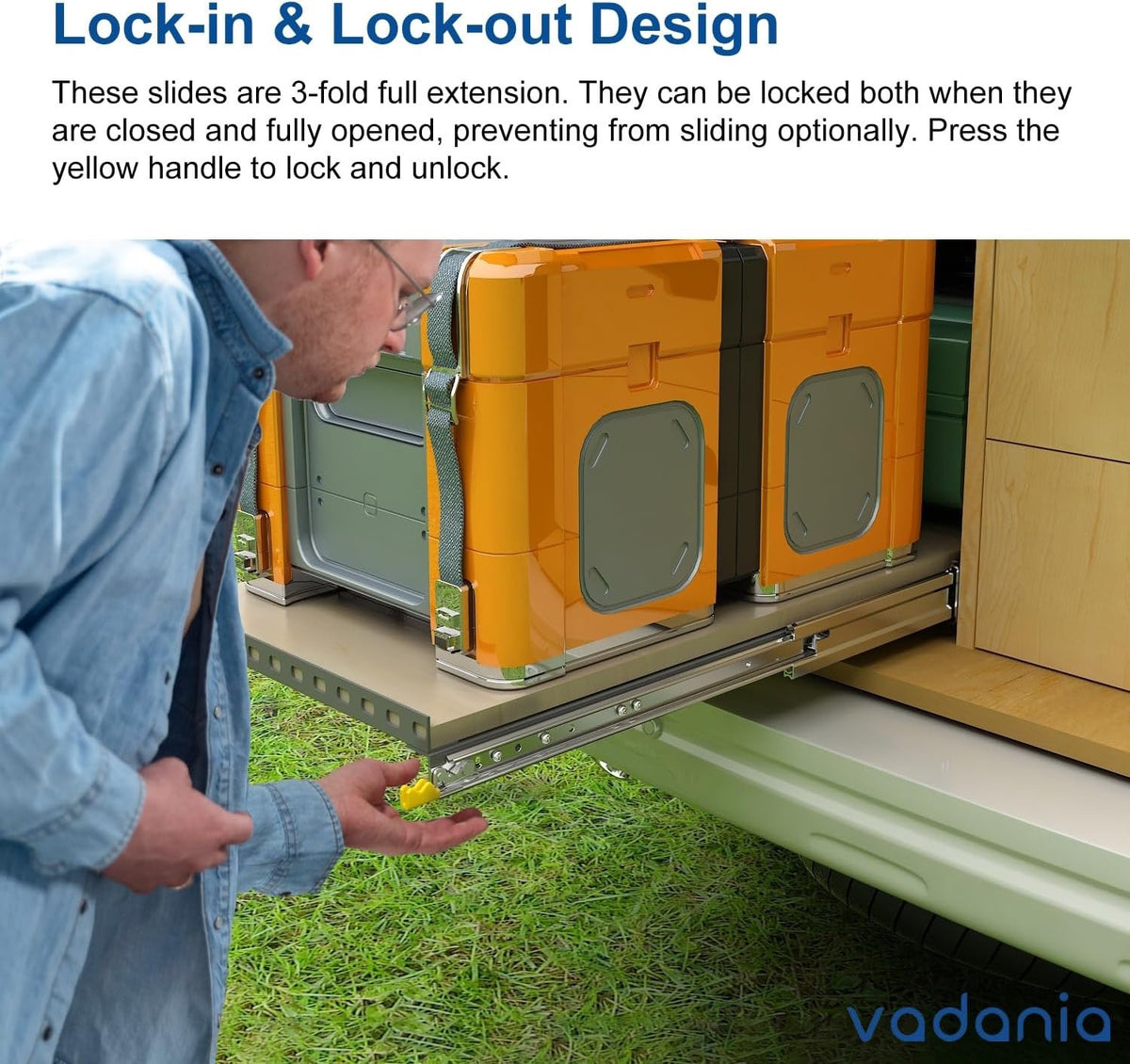

Lock-In and Lock-Out Mechanism

The VADANIA #D76 runners feature an integrated locking system designed to hold the drawer in two positions.

• Closed Position: The mechanism locks the drawer when fully retracted, helping reduce unintended opening.
• Extended Position: The mechanism locks the drawer when fully extended, helping reduce unintended sliding movement.
• Push-Button Operation: Press the release button to disengage the locking mechanism before moving the drawer.
• Practical Storage Control: Useful for compatible workshop, industrial and vehicle storage installations where controlled drawer movement is important.

The locking mechanism is designed to help control movement but should not be treated as a substitute for appropriate load restraint or additional securing systems where required.

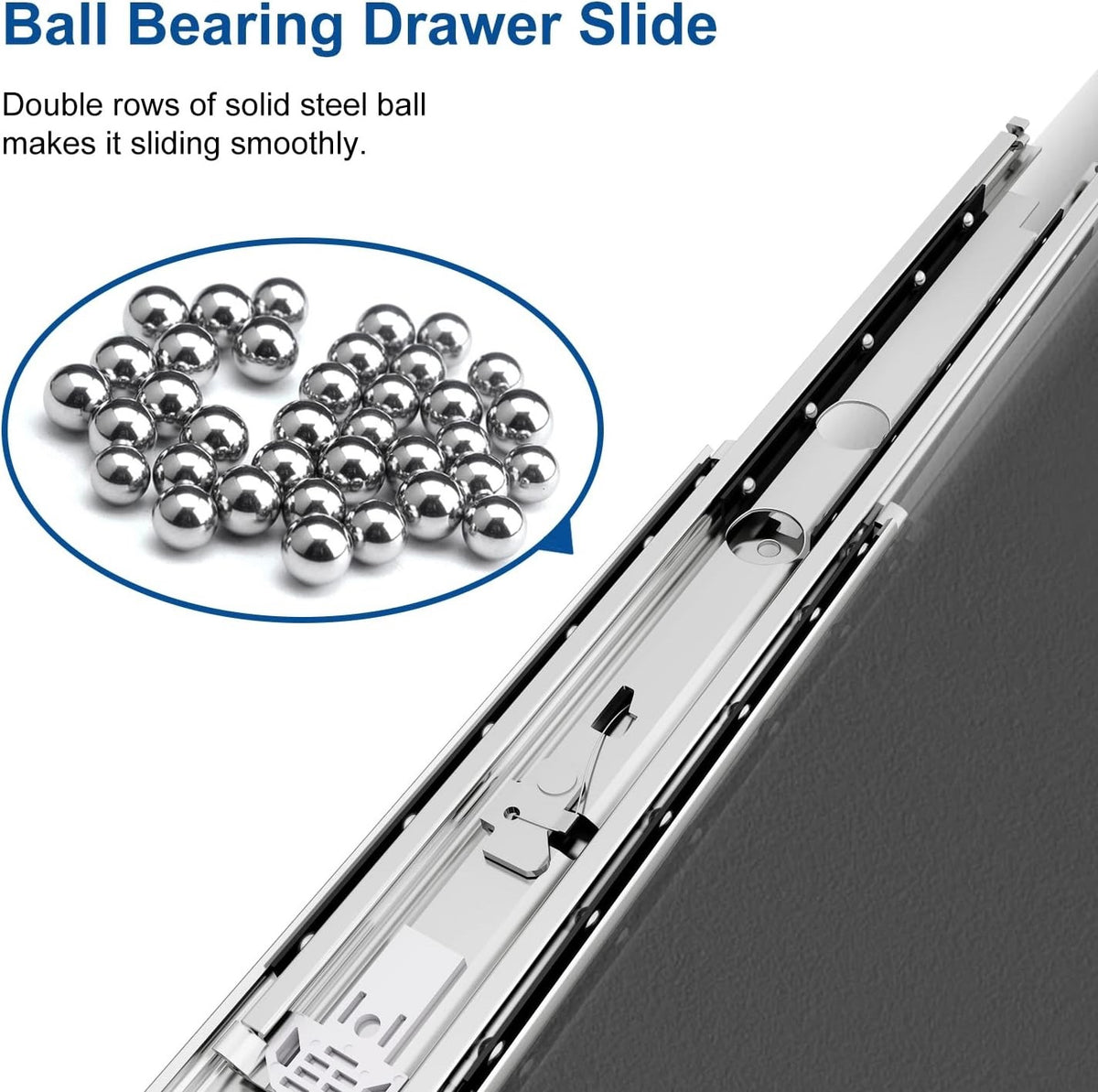

Full-Extension Ball Bearing Design

The three-section telescopic construction allows the runners to extend fully, providing access to the complete drawer or pull-out compartment.

The integrated 7.5mm ball bearings support smooth sliding movement when the runners are correctly aligned, securely mounted and loaded within their applicable capacity.

Suitable Applications

• Workshop Storage: Heavy-duty tool drawers, equipment cabinets and pull-out workstations.
• Industrial Cabinets: Sliding compartments for suitable machinery accessories, tools and supplies.

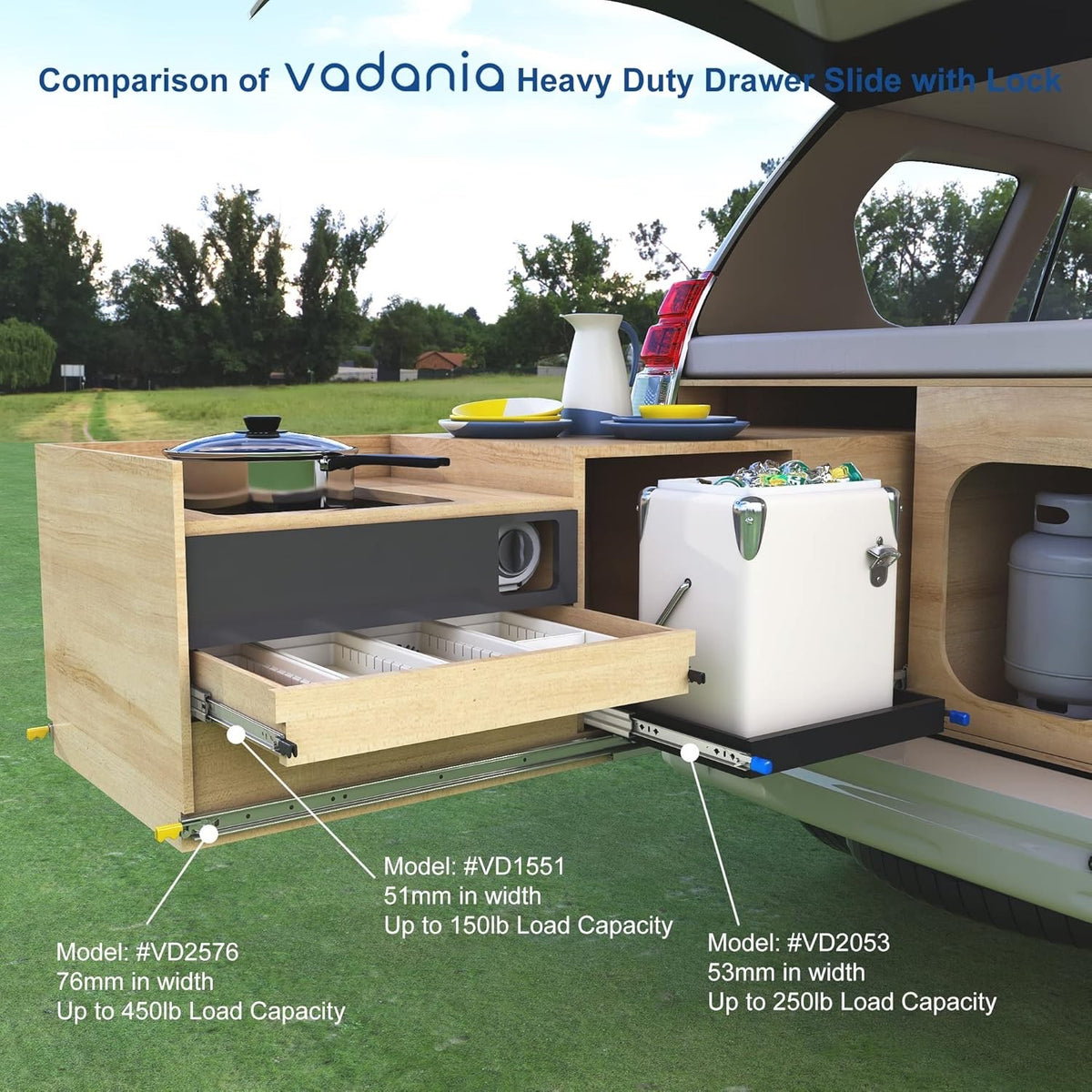

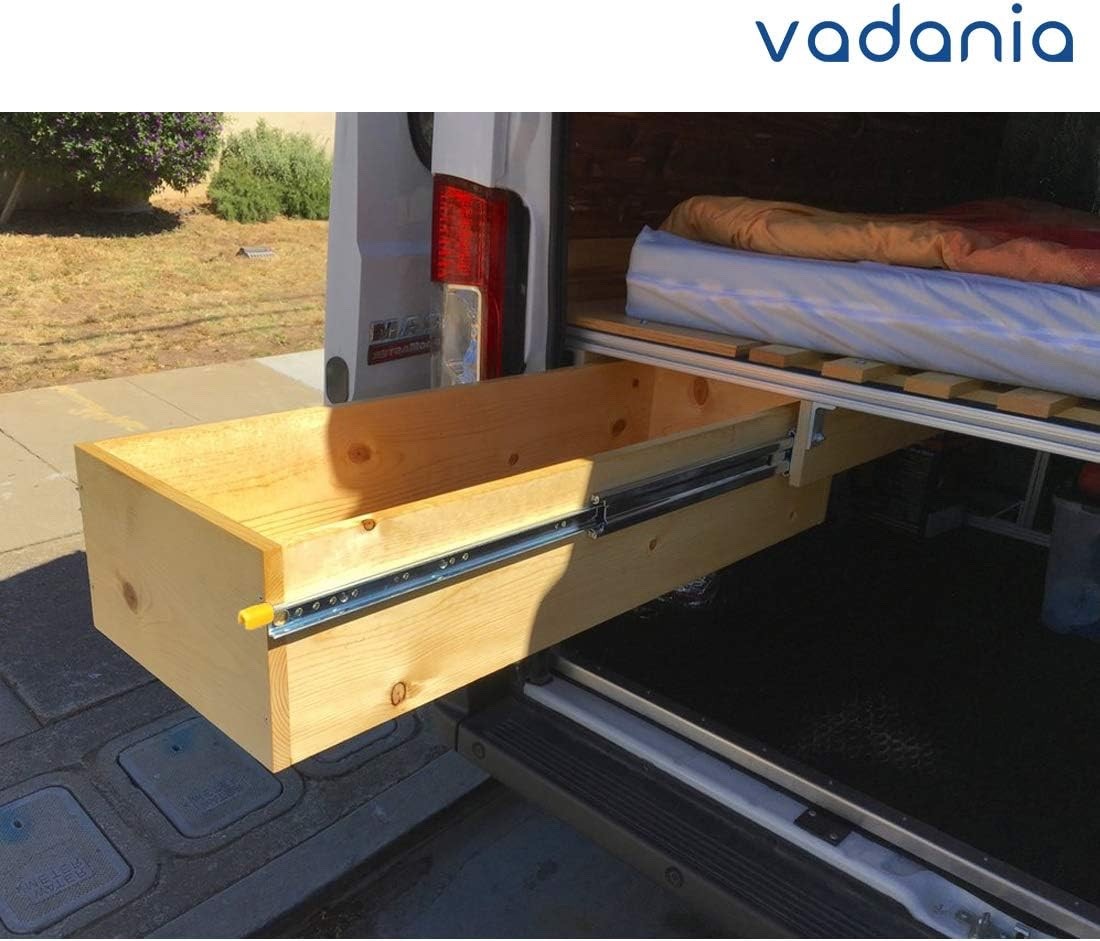

• Van Conversions: Pull-out storage drawers and equipment compartments in appropriately designed vehicle installations.
• Truck Storage: Compatible sliding storage systems and equipment drawers.
• Mobile Workshops: Heavy-duty drawer arrangements for tools and maintenance equipment.
• Warehouse Storage: Industrial storage cabinets and pull-out equipment trays.
• Server and Equipment Racks: Compatible sliding equipment platforms with suitable structural support.
• Custom Storage Projects: Bespoke heavy-duty drawer and sliding platform installations.

Installation Requirements

• Side Mounting: The runners are designed to be installed vertically on opposite sides of the drawer or sliding compartment.
• Side Clearance: Allow approximately 19mm between the drawer and cabinet structure on each side.
• Fixings: The manufacturer recommends suitable M6 mounting screws.
• Mounting Surface: Install onto a structurally suitable cabinet, frame or supporting assembly.
• Alignment: Both runners must be mounted level, parallel and correctly aligned.
• Non-Separable Design: The telescopic sections are not designed to be detached from one another during normal installation.
• Load Distribution: Ensure the drawer and its contents are appropriately supported and that the load is distributed correctly.
• Locking Access: Allow sufficient access to the push-button release mechanism after installation.

Optional Bottom-Mount Configuration

The #D76 runners are designed primarily for side mounting. The manufacturer also illustrates alternative mounting arrangements using compatible VADANIA L-shaped support brackets.

These brackets may allow certain bottom-supported sliding platform configurations where the complete structure is appropriately designed and installed.

Optional L-shaped mounting brackets are not included with this pair of runners and must be purchased separately if required.

Package Contents

• 2 x VADANIA #D76 600mm Ultra Heavy Duty Locking Drawer Runners (1 Pair)

Important Information

• This listing is for the 600mm length and #D76 76mm-wide locking version.
• One pair contains two drawer runners.
• The advertised 220kg maximum capacity applies to the product range and may vary according to runner length.
• Do not assume that every length in the #D76 range supports the full 220kg load.

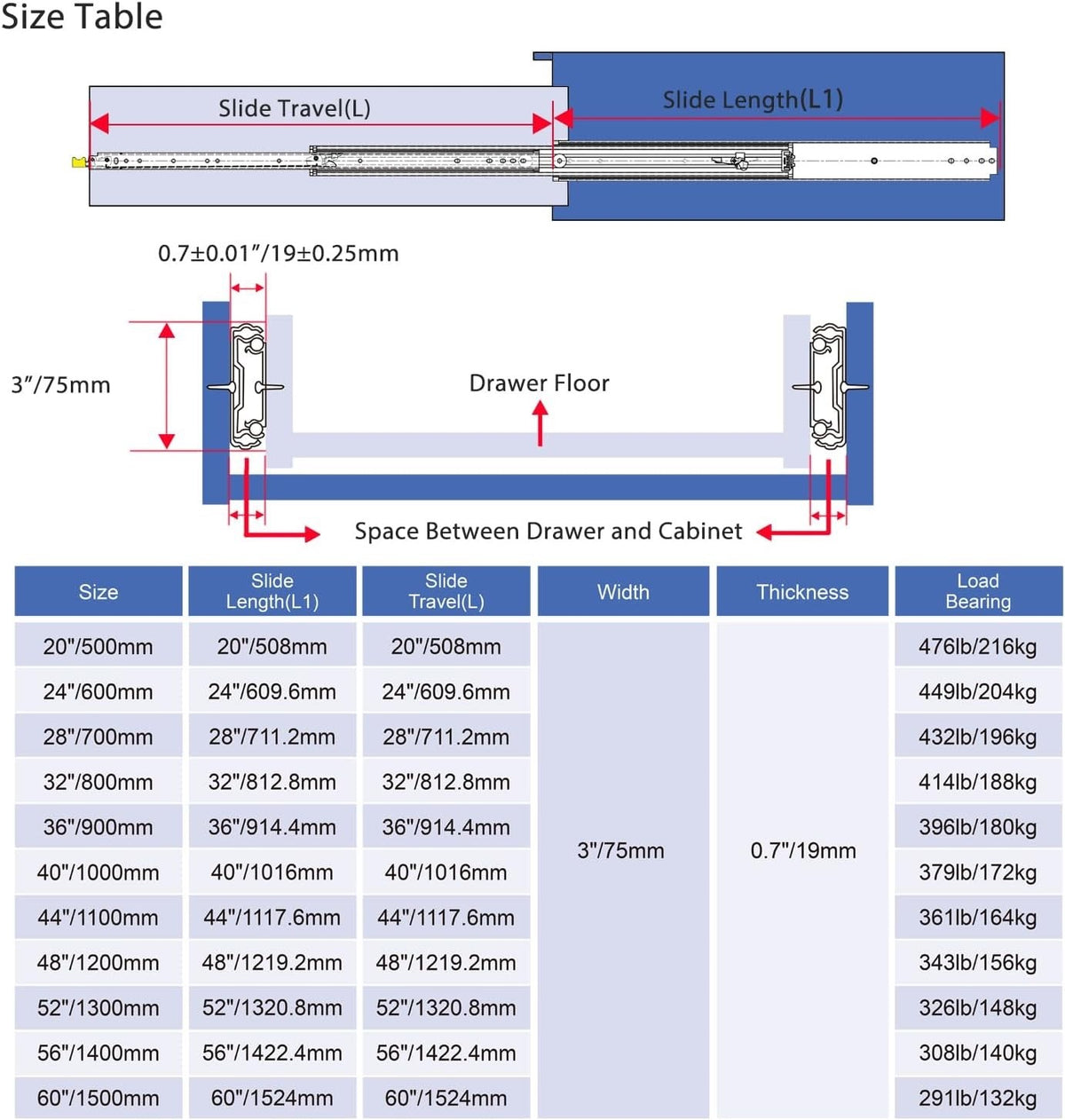

• Confirm the specific permitted load for the 600mm version using the manufacturer's technical load chart before installing heavy equipment.
• The total supported load includes the drawer or sliding platform itself and all contents.
• The runners require approximately 19mm side clearance on each side.
• The runners are non-separable and should not be forcibly dismantled.
• Mounting screws are not included. The manufacturer recommends suitable M6 fixings.
• Optional L-shaped mounting brackets are not included.
• Ensure the cabinet, frame, drawer and mounting fixings are suitable for the intended load.
• Both runners must be correctly aligned and securely mounted before use.
• Uneven loading, poor alignment or inadequate fixings may reduce operating performance and load capacity.
• Do not exceed the applicable load rating for the installed runner length and mounting arrangement.
• The locking mechanism engages in the fully closed and fully extended positions, not necessarily at intermediate positions.
• Ensure the locking buttons are accessible and operating correctly after installation.
• Keep fingers clear of the moving telescopic sections and locking mechanisms during operation.
• Inspect the runners, bearings, fixings and locking components regularly for wear, damage or loosening.
• Do not use the runners if the locking mechanism or any structural component is damaged.
• For vehicle installations, additional restraint and secure mounting may be required to withstand braking, cornering, vibration and other driving forces.
• The drawer locking mechanism must not be relied upon as the sole means of securing heavy equipment during vehicle travel.
• The galvanised finish provides corrosion resistance but does not make the runners completely corrosion-proof.
• Follow the manufacturer's installation and maintenance instructions.
• Please confirm the 600mm runner length, 76mm profile and available installation clearance before purchasing.
