NBYTLT 10 x 3m Ground Reinforcement Grid – 5cm Deep Heavy Duty HDPE Gravel Stabilisation Geocell Mat, Black, for Driveways, Garden Paths, Lawns & Parking Areas
Create a more stable and durable ground surface with the NBYTLT 10 x 3m Ground Reinforcement Grid in Black. Designed for landscaping, garden pathways, gravel driveways, parking areas and other outdoor ground improvement projects, this expandable geocell grid provides a practical solution for reinforcing suitable ground surfaces.
Manufactured from high-density polyethylene (HDPE), the flexible cellular structure expands to cover an area measuring 10 metres long by 3 metres wide. Its 5cm-deep honeycomb-style cells are designed to contain suitable gravel, aggregate, soil or other compatible filling materials, helping distribute loads and reduce unwanted movement of loose surface materials.
The lightweight, expandable construction allows the grid to be positioned over prepared ground, secured using suitable anchoring pins and filled with the required material. It can be used on appropriately prepared flat or sloping surfaces, making it a versatile option for domestic landscaping and suitable ground reinforcement applications.
Please Note: This listing is for the 10m x 3m Black HDPE Ground Reinforcement Grid with a 5cm cell height, providing a calculated coverage area of 30 square metres when fully expanded to the stated dimensions. The grid must be filled with suitable aggregate or other appropriate material to provide its intended stabilisation function. Ground preparation, anchoring pins, joining accessories, gravel, soil and other filling materials are not confirmed as included and may need to be purchased separately.
Specifications
-
Brand: NBYTLT
-
Model: NBYTLT-M4K-J2Q-2SV
-
MPN: NBYTLT-M4K-J2Q-2SV
-
Product Type: Expandable Ground Reinforcement Grid / Geocell Stabilisation Mat
-
Colour: Black
-
Material: High-Density Polyethylene (HDPE)
-

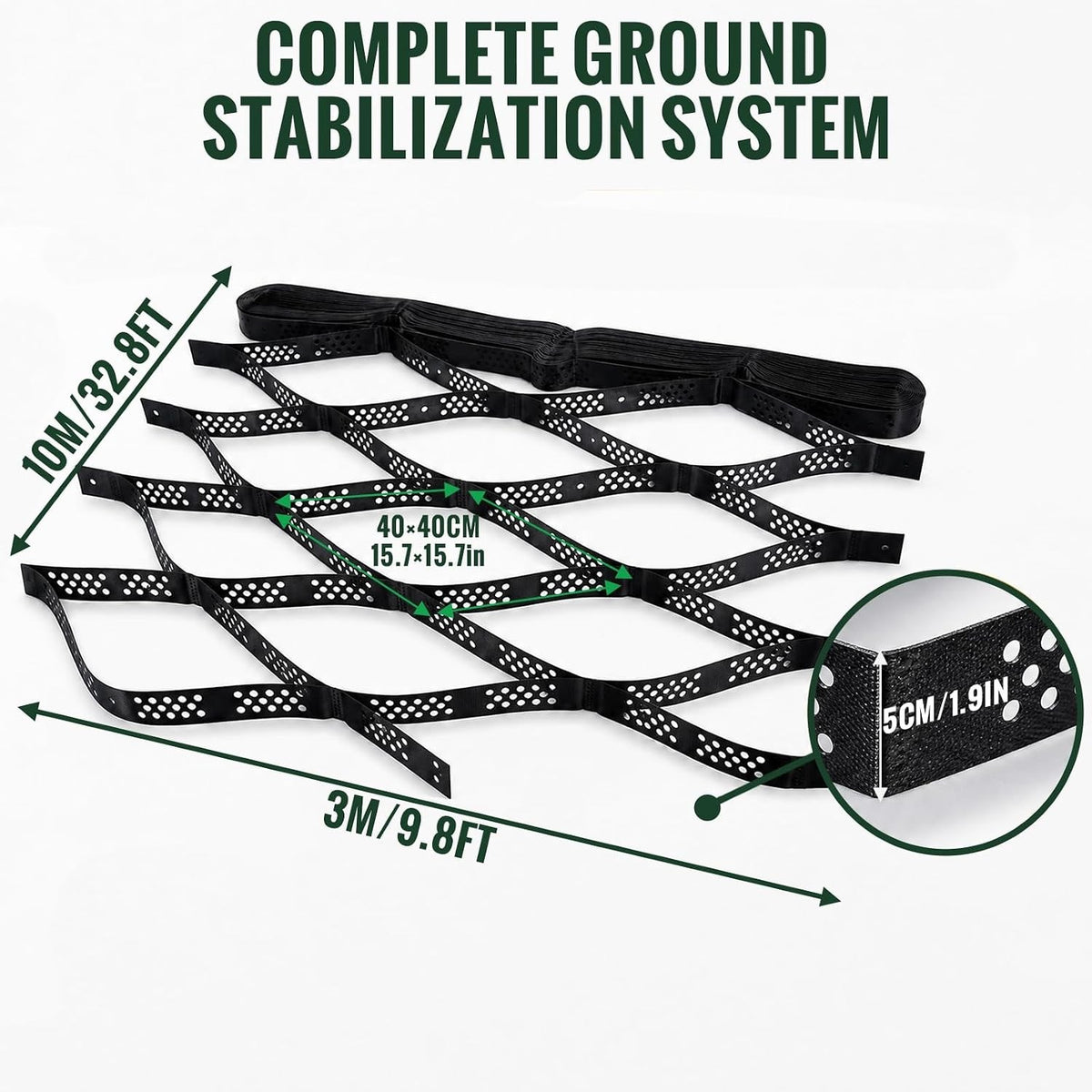

Expanded Length: 10 Metres
-
Expanded Width: 3 Metres
-
Cell Height: 5cm (50mm)
-
Expanded Dimensions: 10 x 3m
-
Calculated Coverage Area: 30m²
-
Structure: Expandable Cellular Geocell Grid
-
Design: Flexible Ground Reinforcement System
-
Installation: Ground Anchoring and Filling Required
-
Suitable Fill Materials: Compatible Gravel, Aggregate and Soil
-
Suitable Ground Types: Appropriately Prepared Flat and Sloping Surfaces
-
Suitable Use: Outdoor Landscaping and Ground Stabilisation
-
Recommended Applications: Garden Paths, Gravel Areas, Lawns, Greenhouses, Driveways and Parking Areas
-
Quantity: 1 Ground Reinforcement Grid
Key Features
-
Large 10 x 3m Coverage: Expands to cover a substantial area measuring 10 metres by 3 metres, making it suitable for larger landscaping and ground reinforcement projects.
-
5cm Deep Cellular Structure: The 50mm-high cells are designed to contain suitable filling materials and help maintain a more stable ground surface.
-
Durable HDPE Construction: Manufactured from high-density polyethylene, providing a combination of flexibility and structural support when correctly installed and filled.
-
Expandable Honeycomb Design: The interconnected cellular structure unfolds across the prepared ground to form a continuous reinforcement grid.
-
Gravel Stabilisation: Helps contain loose gravel and aggregate within individual cells, reducing unwanted displacement during normal use.
-
Ground Load Distribution: The cellular design is intended to help distribute applied loads through the contained filling material and prepared ground beneath.
-
Suitable for Garden Pathways: Can be incorporated into appropriately constructed walking paths to help maintain the position of gravel or other suitable materials.
-
Driveway and Parking Applications: Suitable for consideration in properly designed vehicle access and parking areas, subject to ground conditions and installation requirements.
-
Flat and Sloping Surface Compatibility: Designed for installation on appropriately prepared level ground and certain slopes where suitable anchoring and ground engineering are provided.
-
Flexible Installation: The expandable HDPE structure can be positioned to follow suitable prepared ground contours.
-
Quick Deployment Design: The grid can be unfolded, positioned, anchored and filled without requiring complex mechanical assembly.
-

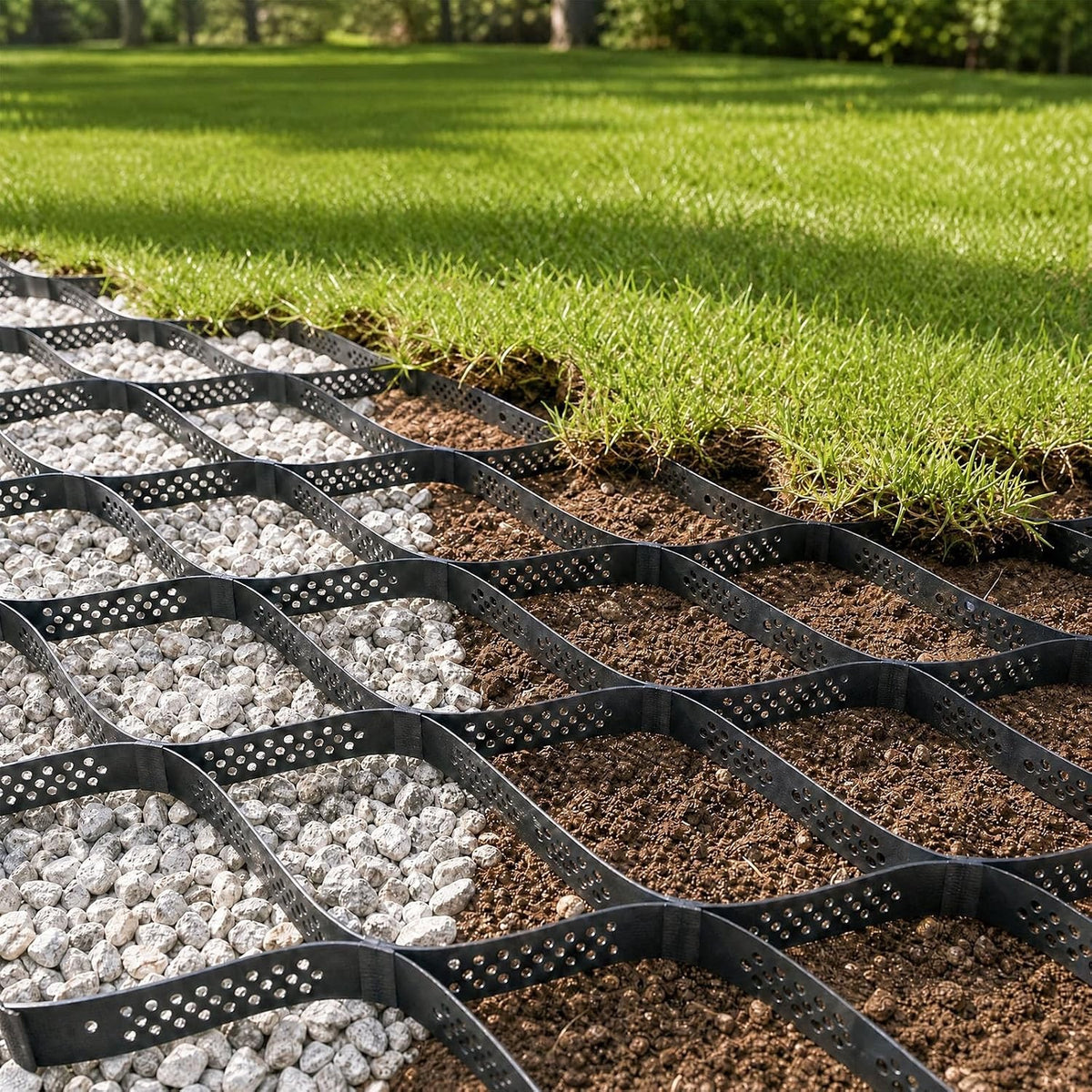

Compatible with Different Fill Materials: Can be used with suitable gravel, aggregate or soil depending on the intended ground surface and project requirements.
-
Outdoor Landscaping Applications: Suitable for gardens, greenhouses, gravel areas and other appropriate outdoor ground improvement projects.
-
Cellular Material Containment: The interconnected cells help retain filling materials within defined sections rather than allowing them to spread freely across the surface.
-
Versatile Ground Reinforcement: Can be incorporated into suitable landscaping projects where additional ground stabilisation is required.
Ground Reinforcement and Stabilisation

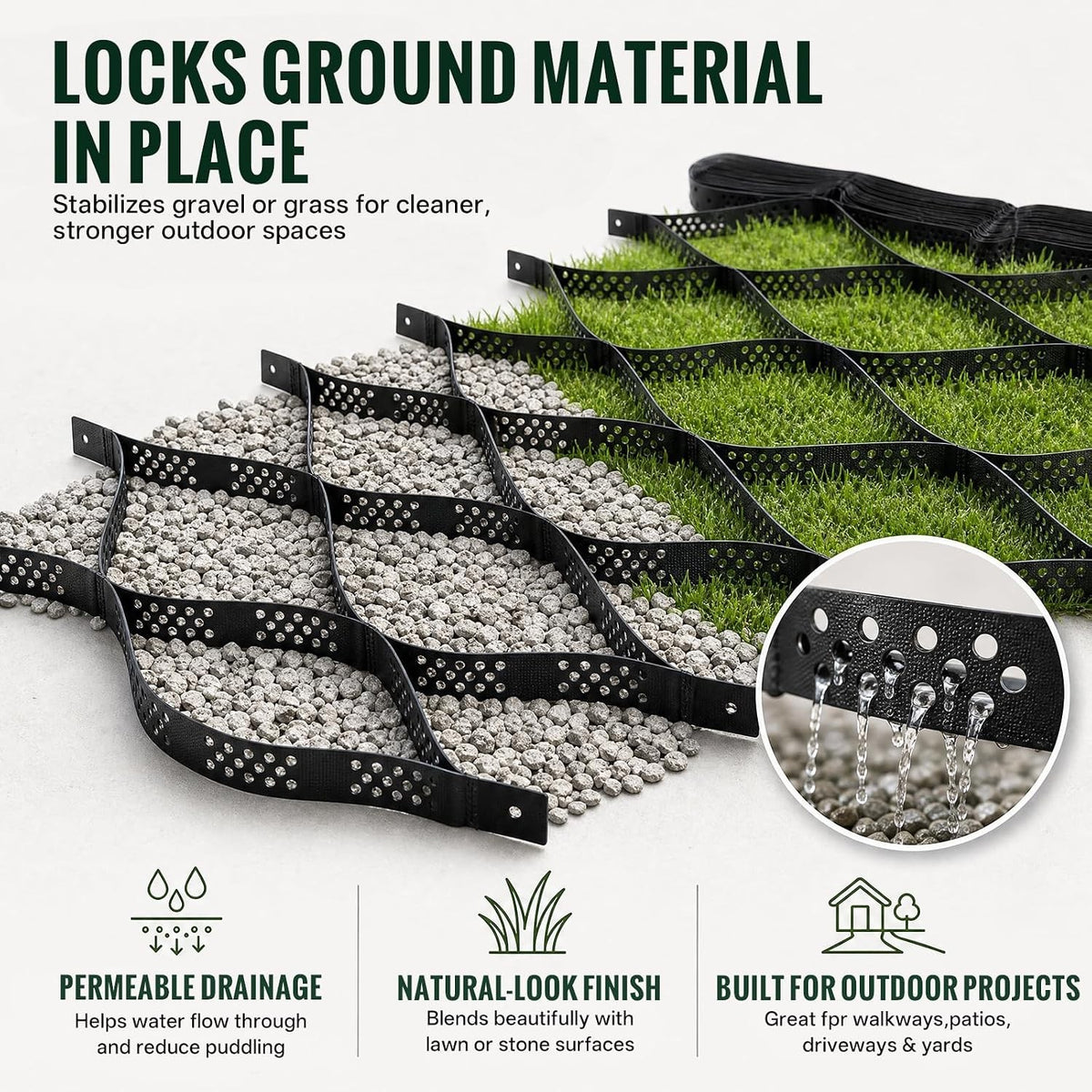

The NBYTLT geocell grid works by creating a network of interconnected cells that contain suitable filling materials. When the grid is correctly expanded, anchored and filled, the cellular structure helps restrict lateral movement of the material.
This containment system can help improve the stability of gravel pathways, landscaped areas and other suitable surfaces. Performance depends on the condition of the underlying ground, the selected filling material, the depth and quality of the prepared base and the installation method.
Suitable Applications
-
Garden Pathways: Helps retain suitable gravel or aggregate along garden walking routes.
-
Gravel Driveways: Can be incorporated into appropriately engineered driveway surfaces to help contain loose aggregate.
-
Parking Areas: Suitable for ground reinforcement projects where the supporting base and installation are designed for the intended vehicle loads.
-
Lawn Reinforcement: Can be used as part of suitable landscaping systems intended to reinforce ground beneath grass or soil.
-
Greenhouses: Provides a cellular reinforcement structure for appropriately prepared greenhouse paths and ground areas.
-
Garden Landscaping: Suitable for creating defined gravel areas and reinforced outdoor surfaces.
-
Sloping Ground: Can help retain compatible filling materials on suitable slopes when correctly anchored and engineered.
-
Outdoor Access Routes: Suitable for constructing appropriate pedestrian routes and utility access areas.

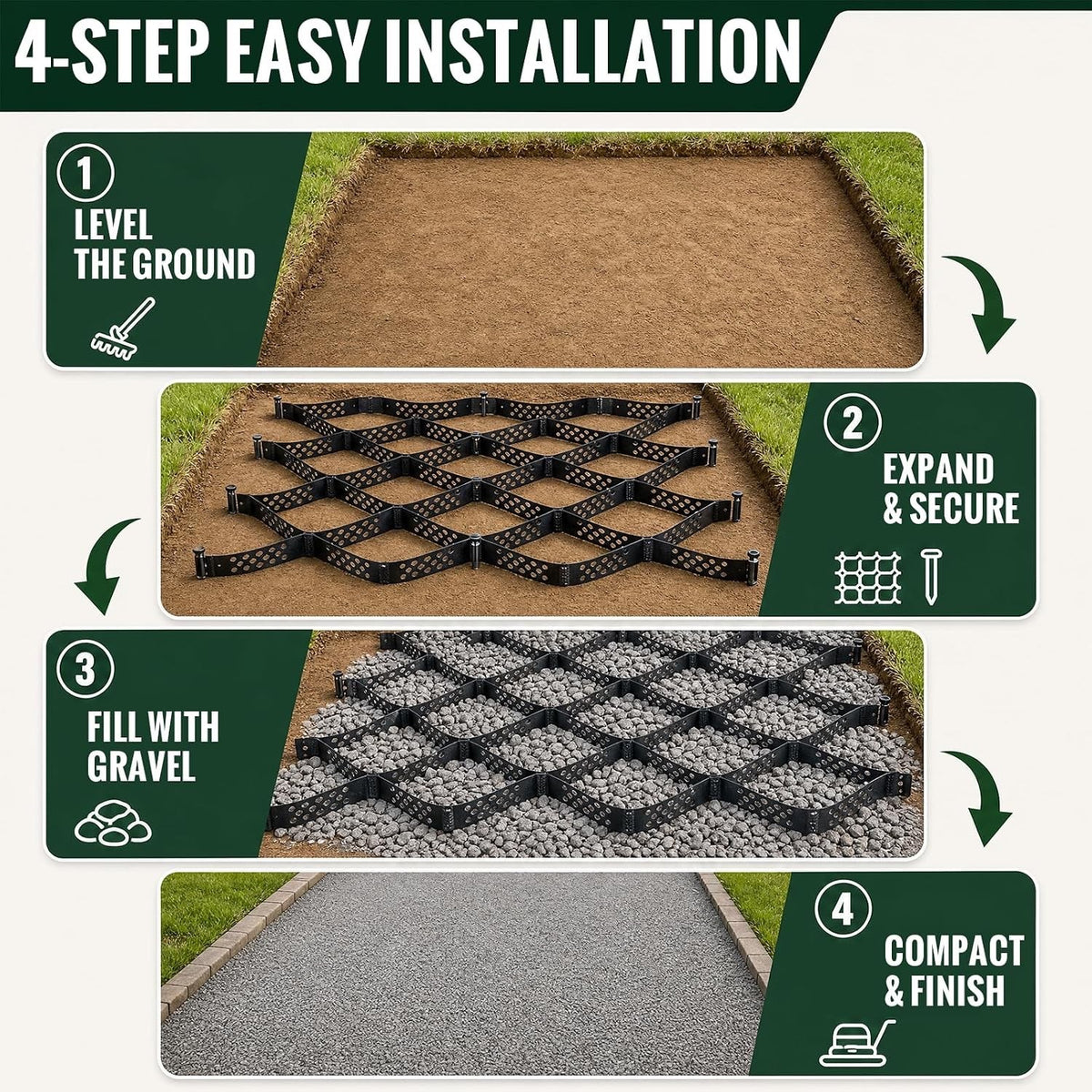

Installation Overview
-
Step 1 – Prepare the Ground: Clear the intended area of unsuitable debris, vegetation and loose material. Prepare and level the sub-base according to the project requirements.
-
Step 2 – Position the Grid: Place the folded geocell structure onto the prepared surface.
-
Step 3 – Expand the Cells: Carefully extend the grid to the required dimensions, maintaining the intended cellular shape.
-
Step 4 – Anchor the Grid: Secure the grid using suitable ground anchors or fixing pins appropriate for the ground conditions.
-
Step 5 – Connect Adjacent Sections: Where multiple grids are installed, join them using an appropriate compatible connection method.
-
Step 6 – Add Filling Material: Fill the cells with suitable gravel, aggregate, soil or another material appropriate for the intended application.
-
Step 7 – Level and Compact: Distribute and compact the filling material where required, following the relevant installation specification.
-
Step 8 – Inspect the Surface: Check that the grid is correctly positioned, adequately filled and stable before the area is placed into use.
Choosing Suitable Filling Materials
The cellular structure can be used with different filling materials depending on the intended application and ground conditions.
-
Gravel: Suitable for appropriately constructed gravel pathways and landscaped areas.
-
Crushed Aggregate: Can provide a compactable filling material for suitable reinforced ground surfaces.
-
Soil: May be used in suitable landscaping and vegetation-supporting applications.
-
Project-Specific Fill: The appropriate material should be selected according to the intended loading, drainage and ground conditions.
Coverage and Material Planning
When fully expanded to the stated dimensions, the grid covers an area of approximately 30 square metres.
-
Length: 10m
-
Width: 3m
-
Coverage: 30m²
-
Cell Depth: 0.05m
-
Nominal Cell Volume: Approximately 1.5m³ across the full 30m² area, before allowing for the grid material and any additional surface covering.
The actual quantity of filling material required will depend on the final expanded dimensions, cell geometry, ground preparation, compaction and any additional covering depth.
Package Contents
- 1 x NBYTLT Black HDPE Expandable Ground Reinforcement Grid – 10 x 3m, 5cm Cell Height
Important Information
- This listing is for the 10m x 3m size with a 5cm cell height.
- The calculated coverage area is 30m² when the grid is fully expanded to the stated dimensions.
- The grid is a ground reinforcement component and is not intended to function as a finished load-bearing surface without suitable filling material.
- Suitable ground preparation is essential for the intended performance of the reinforcement system.
- Ground anchoring pins, joining accessories and filling materials are not confirmed as included.
- The grid must be adequately anchored before filling to help maintain the intended cell shape and position.
- Choose filling materials appropriate for the intended use, ground conditions and expected loads.
- Vehicle use requires a suitably designed base and installation capable of supporting the anticipated loading.
- No specific vehicle load rating or maximum axle load has been confirmed for this product.
- Do not assume suitability for heavy commercial vehicles or machinery without appropriate technical assessment.
- Installation on slopes may require additional anchoring, drainage measures and professional ground engineering.
- The grid is not a substitute for properly designed foundations, retaining structures or structural ground support systems.
- Do not use the product as a standalone retaining wall or structural barrier.
- Check for underground utilities, drainage pipes and other services before installing ground anchors.
- Ensure appropriate drainage is provided to prevent water accumulation and ground instability.
- Inspect the completed installation periodically for settlement, exposed grid sections or displaced filling material.
- Additional filling or maintenance may be required depending on traffic and environmental conditions.
- Keep sharp tools and equipment away from unsupported grid sections to avoid accidental damage.
- Actual coverage depends on correct expansion and installation of the cellular structure.
- Please measure the intended installation area and confirm the required ground preparation before purchasing.
