Drawer Runners 650mm Heavy Duty Soft Close Full Extension 90KG Slide Rails

FREE DELIVERY ON ALL ORDERS

TP-LAIE 650mm Heavy Duty Drawer Runners Soft Close 90KG Load Full Extension Ball Bearing Slides 26 Inch Galvanized

The TP-LAIE heavy duty drawer runners are designed for high load capacity and smooth operation, featuring a full extension mechanism and soft-close functionality. Constructed from thick cold rolled steel with a galvanized finish, these side mount rails provide durability and consistent performance for demanding storage applications.

📦 Product Specifications
Brand: TP-LAIE
Material: Alloy Steel (Q235 Cold Rolled Steel)
Colour: Galvanized
Length: 650 mm (26 inch)
Width: 51 mm
Thickness: 12.7 mm
Product Dimensions: 60L x 5.1W x 1.3Th cm
Load Capacity: 90 kg
Mount Type: Side Mount
Finish: Galvanized

🧰 Key Features
✔ Heavy Duty Load Capacity – Supports up to 90 kg with reinforced multi-layer rail design

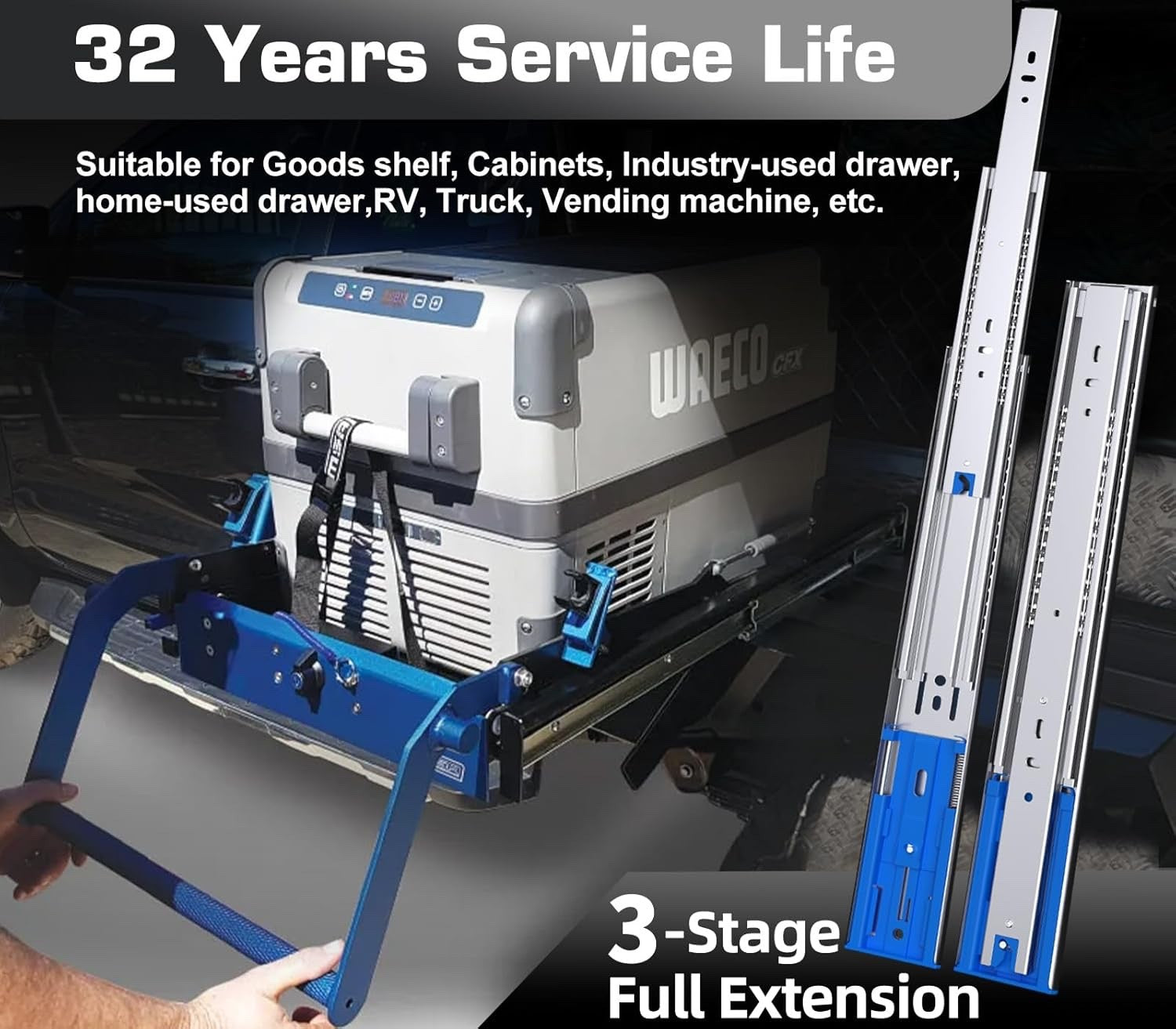

✔ Full Extension Slides – 3-stage extension allows full access to the entire drawer space

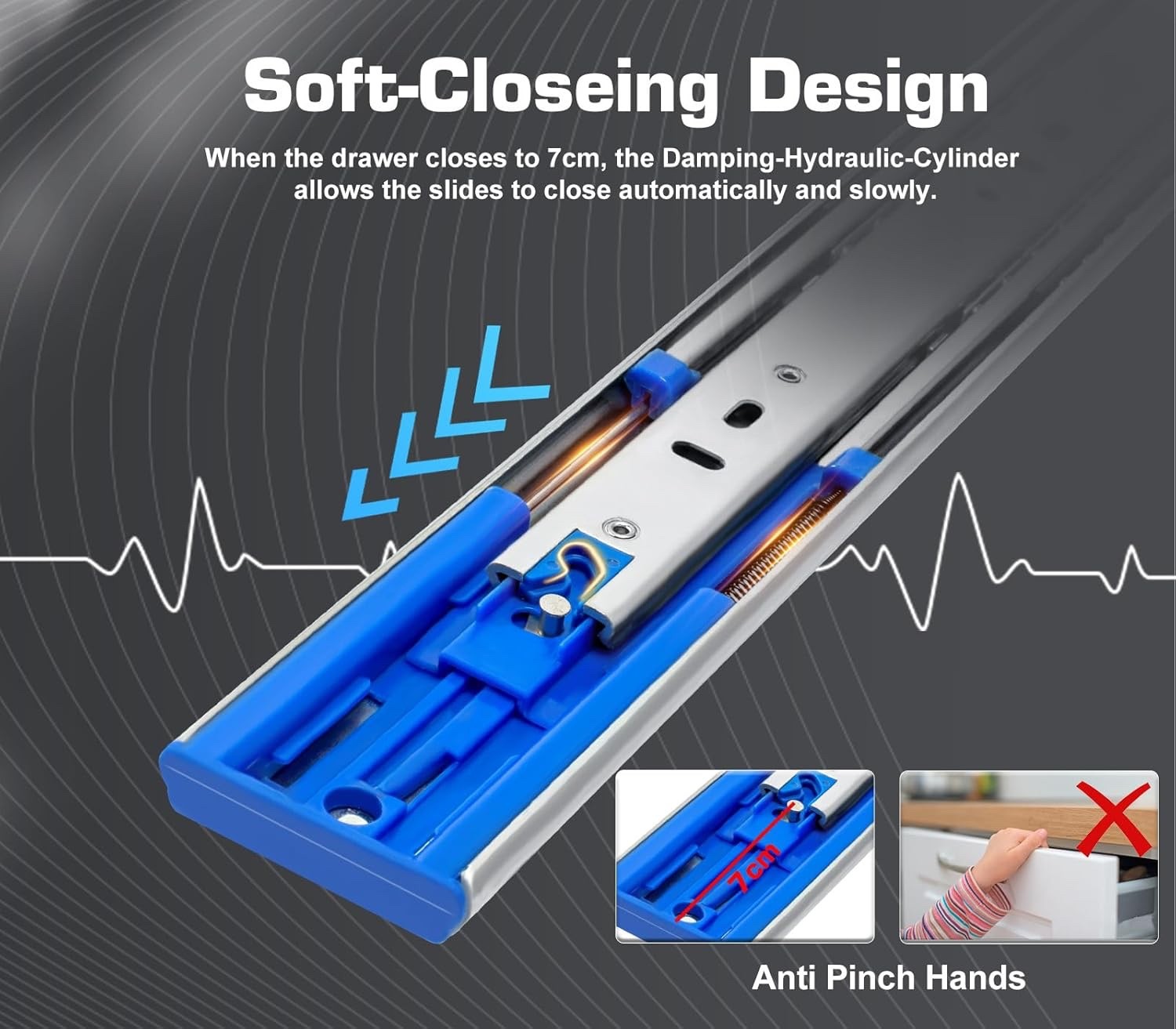

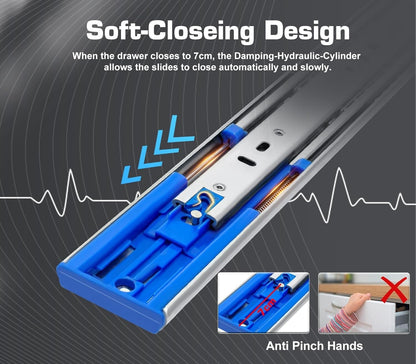

✔ Soft Close Mechanism – Hydraulic damping system ensures smooth and controlled closing
✔ Ball Bearing Operation – Double row solid steel ball bearings provide stable and quiet movement

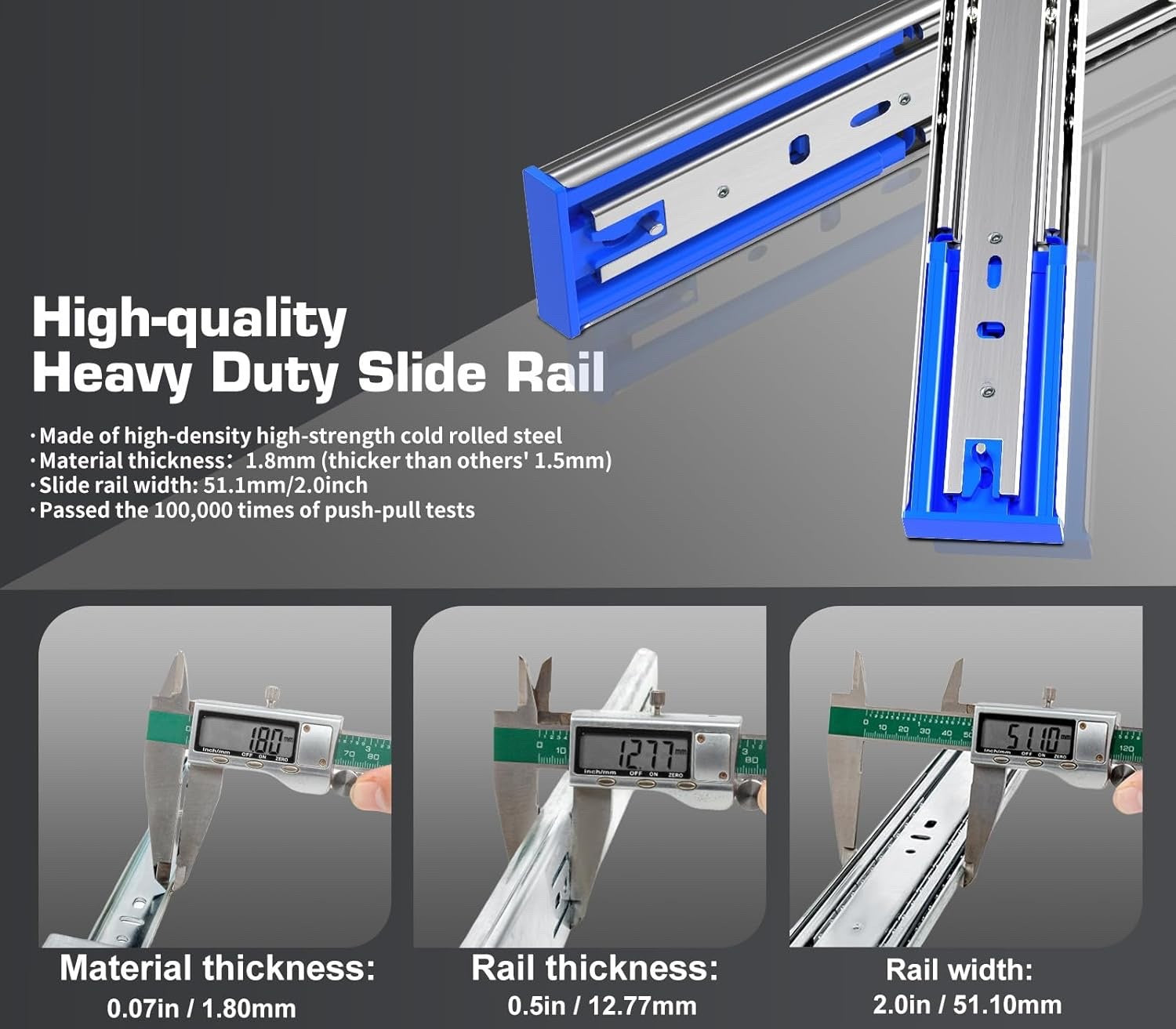

✔ Durable Steel Construction – Made from 1.8 mm thick high-strength cold rolled steel for strength and rigidity
✔ Corrosion Resistant Finish – Galvanized surface helps resist rust and wear over time
✔ Long Service Life – Designed to withstand up to 100,000 push-pull cycles under load

📦 Package Includes

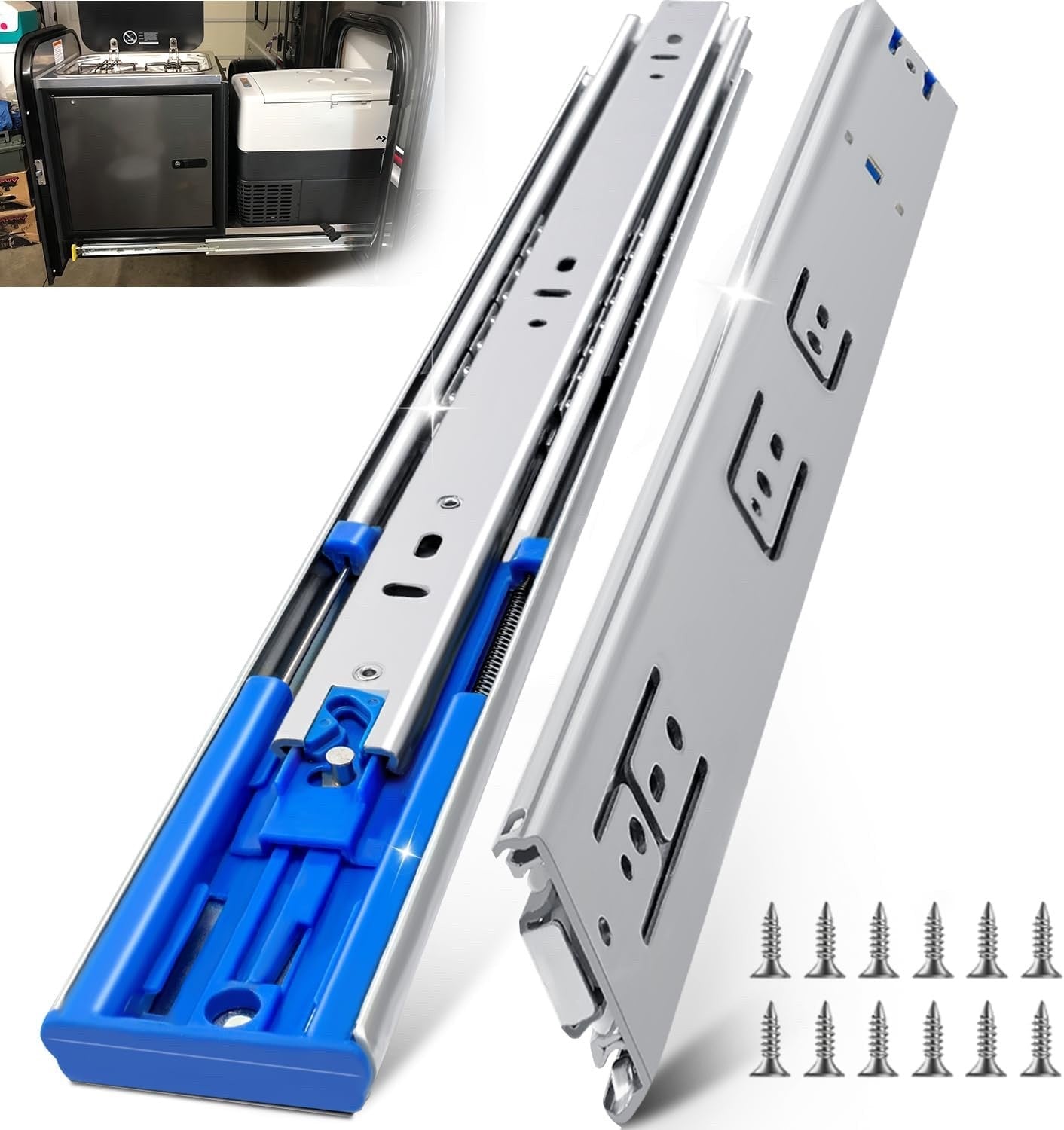

1 Pair Drawer Runners (26 inch / 650 mm)
24 x M4 Screws
Installation Instructions

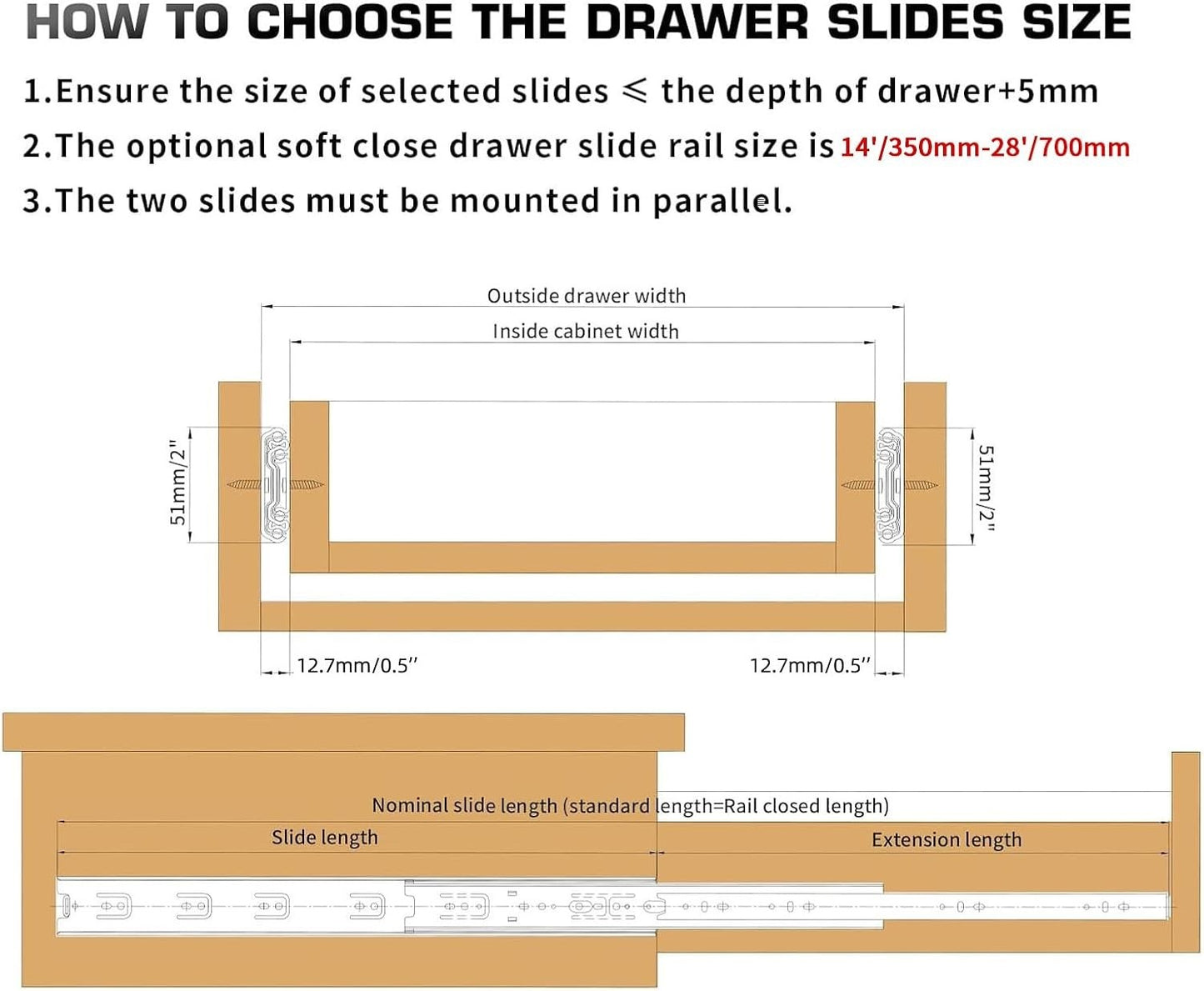

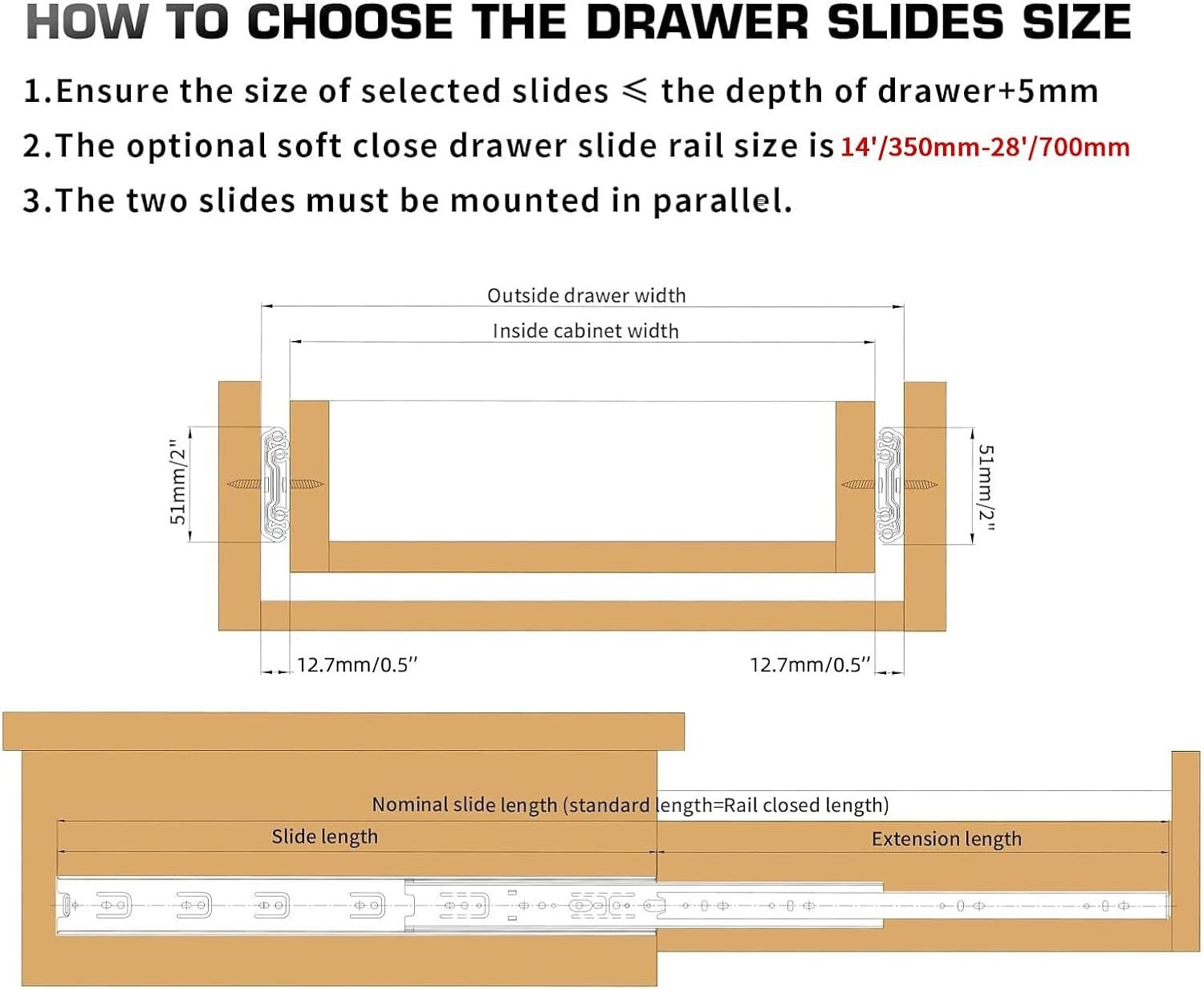

ℹ️ Installation Notes
Ensure rail length does not exceed drawer depth
Allow 12.7 mm clearance on each side for fitting
Install slides parallel and level for proper operation
